Productnummer: 2986093

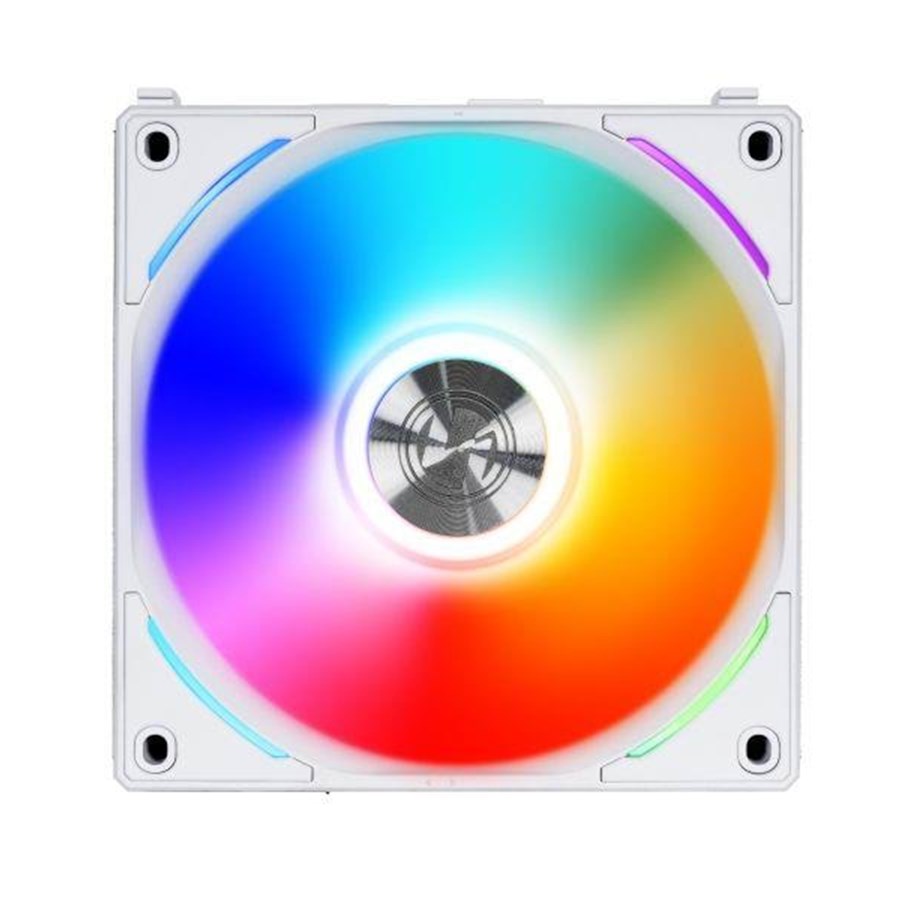

Lian Li UNI FAN AL120 - Case ventilator - 120mm - Wit met RGB-licht - 28 dBA
Ventilator, 120mm x 120mm x 25mm (Hoogte x breedte x diepte), geluidsniveau 17 - 28.3 dBa, lucht doorstroom max 64.5 CFM, max statische druk 2.62 mmH2O, fan snelheid: 800 - 1900 ±10% RPM, PWM gestuurd, lager type: Fluid Dynamic Bearing (FDB), moederboord aansluiting: 4-pins & RGB aansluiting: 3-pins (5 volt), RGB controler, kan gekoppeld worden , speciale hub benodigd Lian Li UNI HUB, bestuurd door: ASUS AURA / Asrock Polychrome Sync / Gigabyte Fusion / MSI Mystic Light, kleur wit met RGB.
• Daisy-chained with less cable clutter
• Lian Li L-Connect software to control RGB effects
• Addressable RGB for cool lighting effects with motherboard software and synced with other RGB products
Op voorraad
29,90 €
24,71 € excl. BTW
Goedkoopste privé verzending 4,99 €
6 stks
Op voorraad - 2-3 werkdagen levertijd
MODULARITY FAN
Simply daisy chain the fans together with the slide-in interlocking system to pass the signals through the pin-to-pad contact. Users can choose to go with a single fan or link up to 4 fans in a group, and operate each group with just 2 cables.
BETTER PERFORMANCE
Compared to UNI FAN SL120, AL120 has better performance in air flow(64.5 CFM), noise levels(17 ~ 28.3 dB) and static pressure(2.62 mmH2O).
ENDLESS LIGHTING EFFECT COMBINATIONS
The ARGB LEDs are located at the inner fan blade and the four corner edges of the fan frame.
Users can set both the fan blade lighting effects and the fan frame inner edge lighting effects separately, or go with the built-in combined lighting effects.
L-CONNECT 2 SOFTWARE TO CONTROL AL120
Perfectly control and preview the lighting effect of the AL series with L-Connect 2 interface.
ADJUST THE SPEED OF EACH FAN GROUP
Perfectly control and preview the lighting effect of the AL series with L-Connect 2 interface.
Fan Speed: 800 RPM – 1900 RPM
Users can set the fan speed of each group of UNI FANs manually or set it at PWM to let the motherboard control the speed.
SET PERSONALIZED LED MODE AND COLOR
Designed for AL120, users can choose to set their personalized lighting effect through L-Connect 2. Thousands of combinations can be accomplished.
CONTROL UP TO 16 FANS IN ONE GO
The exclusive controller (UNI HUB) for the AL series that can connect up to 16 fans is included in the 3 pack.
MANAGE UP TO 64 FANS
L-Connect 2 can now manage a maximum of 4 controllers at a time, allowing users to control 64 fans within the software.
DAZZLING AT ALL ANGLES
Brushed aluminum trim with reflecting edges on both sides of the fan frame.
Rear metallic medallion at the center with cables hidden in X-style fan support.
Aesthetic details considered for both intake and outtake mounting in the case.
Simply daisy chain the fans together with the slide-in interlocking system to pass the signals through the pin-to-pad contact. Users can choose to go with a single fan or link up to 4 fans in a group, and operate each group with just 2 cables.
BETTER PERFORMANCE
Compared to UNI FAN SL120, AL120 has better performance in air flow(64.5 CFM), noise levels(17 ~ 28.3 dB) and static pressure(2.62 mmH2O).
ENDLESS LIGHTING EFFECT COMBINATIONS
The ARGB LEDs are located at the inner fan blade and the four corner edges of the fan frame.
Users can set both the fan blade lighting effects and the fan frame inner edge lighting effects separately, or go with the built-in combined lighting effects.
L-CONNECT 2 SOFTWARE TO CONTROL AL120
Perfectly control and preview the lighting effect of the AL series with L-Connect 2 interface.
ADJUST THE SPEED OF EACH FAN GROUP
Perfectly control and preview the lighting effect of the AL series with L-Connect 2 interface.
Fan Speed: 800 RPM – 1900 RPM
Users can set the fan speed of each group of UNI FANs manually or set it at PWM to let the motherboard control the speed.
SET PERSONALIZED LED MODE AND COLOR
Designed for AL120, users can choose to set their personalized lighting effect through L-Connect 2. Thousands of combinations can be accomplished.
CONTROL UP TO 16 FANS IN ONE GO
The exclusive controller (UNI HUB) for the AL series that can connect up to 16 fans is included in the 3 pack.
MANAGE UP TO 64 FANS
L-Connect 2 can now manage a maximum of 4 controllers at a time, allowing users to control 64 fans within the software.
DAZZLING AT ALL ANGLES
Brushed aluminum trim with reflecting edges on both sides of the fan frame.
Rear metallic medallion at the center with cables hidden in X-style fan support.
Aesthetic details considered for both intake and outtake mounting in the case.
Producent
Productnummer
2986093
Model
UF-AL120-1W
EAN
4718466010155
Naar de website van de producent
Geschikte locatie
Computer behuizing
Soort
Ventilator
Ventilator diameter
12 cm
Rotatiesnelheid ( min)
800 RPM
Rotatiesnelheid ( max)
1900 RPM
Geluidsniveau (lage snelheid)
17 dB
Geluidsniveau (hoge snelheid
28,3 dB
Maximum luchtstroom
64,5 cfm
Maximum luchtdruk
2,62 mmH2O
Type lager
Vloeistof dynamisch lager (FDB)
Ventilatorlagertechnologie
Vloeistof dynamisch lager (FDB)
Aantal per verpakking
1 stuk(s)
Kleur van het product
Wit
Materiaal
Aluminium, Polybutylene terephthalate (PBT), Polycarbonaat (PC)
Aantal ventilatoren
1 ventilator(en)
Aantal ventilatorbladen
7
Stroomverbruik (typisch)
5,94 W
Fan stroom
0,22 A
Breedte
120 mm
Diepte
120 mm
Hoogte
25 mm
Type verpakking
Hangende doos
Inclusief schroeven
Ja
RGB-controller inbegrepen
Ja
Prestatie
Geschikte locatie
Computer behuizing
Soort
Ventilator
Ventilator diameter
12 cm
Rotatiesnelheid ( min)
800 RPM
Rotatiesnelheid ( max)
1900 RPM
Geluidsniveau (lage snelheid)
17 dB
Geluidsniveau (hoge snelheid
28,3 dB
Maximum luchtstroom
64,5 cfm
Maximum luchtdruk
2,62 mmH2O
Type lager
Vloeistof dynamisch lager (FDB)
Ventilatorlagertechnologie
Vloeistof dynamisch lager (FDB)
Aantal per verpakking
1 stuk(s)
Design
Kleur van het product
Wit
Materiaal
Aluminium, Polybutylene terephthalate (PBT), Polycarbonaat (PC)
Aantal ventilatoren
1 ventilator(en)
Aantal ventilatorbladen
7
Energie
Stroomverbruik (typisch)
5,94 W
Fan stroom
0,22 A
Gewicht en omvang
Breedte
120 mm
Diepte
120 mm
Hoogte
25 mm
Inhoud van de verpakking
Type verpakking
Hangende doos
Inclusief schroeven
Ja
RGB-controller inbegrepen
Ja
