Productnummer: 2483528

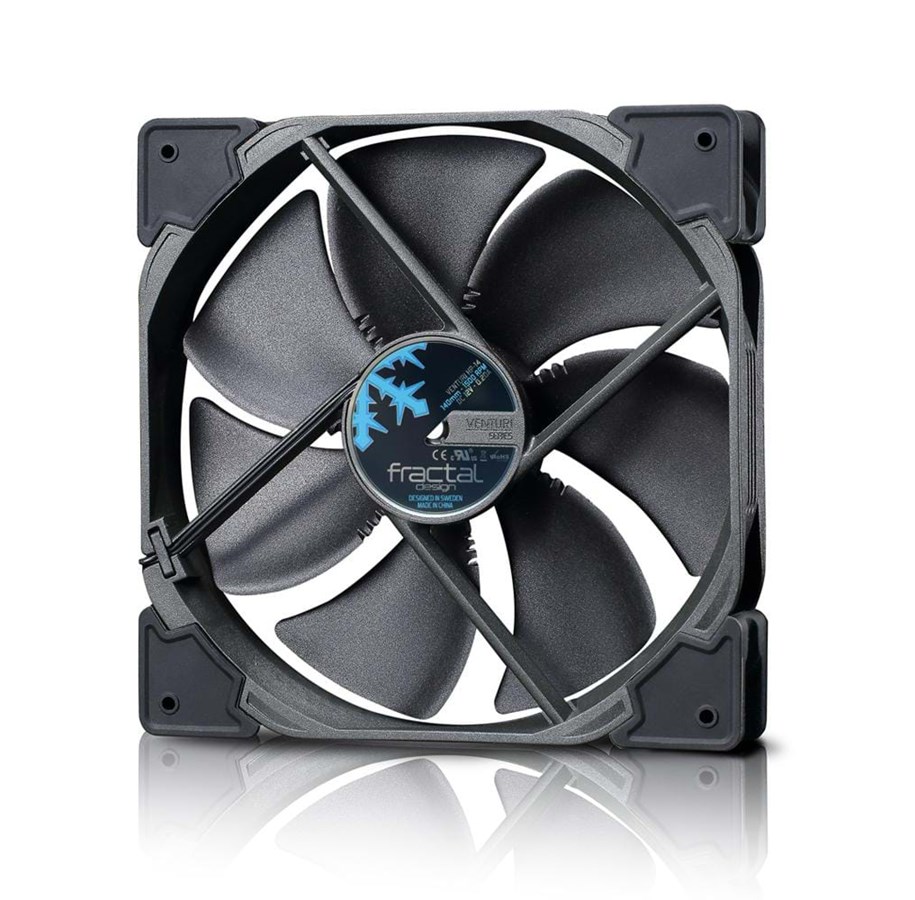

Fractal Design Fan Venturi HP-14 - Case ventilator - 140mm - Black - 30 dBA
Cabinet cooler, size: 140mm x 140mm x 25mm (HxWxD), noise level: max 30.1 dBA, air flow: max 78.1 CFM, fan RPM: max 1500 ±10%, PWM controlled, 4 pin motherboard connection, black
22,80 €
18,84 € excl. BTW
Goedkoopste privé verzending 4,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
The Venturi High Pressure Series PWM fans, HP-12 and HP-14, are optimized for high-restriction airflow scenarios, making them an excellent choice for usage on large heatsinks, on radiators, or in other highly restrictive scenarios.Designed with a variety of performance-increasing and noise-reducing features, these fans can move an amazing amount of air through restricted environments compared to other fans at the same, minimal noise level.The HP-14 comes with two sets of solid vibration-dampening rubber corners: one for standard 140mm fan hole spacing (125mm) and one compatible with the standard 120mm hole spacing (105mm). The Venturi High Pressure Series PWM fans are ideal for those looking for a perfect balance between high performance and low noise built from sturdy, high quality materials.Key features- Featuring true FDB-bearings, providing silent operation coupled with a long lifespan- Equipped with a counter-balanced magnet that reduces the axial tension on the bearing- Features integrated vibration-dampening corners made from solid high-quality synthetic rubber- Dense sturdy construction made from high grade glass fiber reinforced thermoplastic polymer- Fan geometry is optimized for high pressure delivering high-performance results in highly restrictive usage scenarios such as in use with large dense heatsinks or water cooling radiators. - Featuring PWM control with a very wide speed range starting at only 400RPM (400 +/- 100 RPM), ideal for CPU heatsinks or radiators where the motherboard can control fan speed based on CPU temperature. - Aerodynamically shaped thin stator struts reduce noise and unwanted turbulence. - Strategically placed notches on blades further reduce and diffuse any humming noise produced when blades pass stator struts - Trip wire technology introduces micro-turbulent layer that combats elements negatively affecting performance resulting in quieter operation - Comes with PWM Y-cable connecting additional fans to single PWM header on motherboard or PWM fan controller - 140mm fans come with additional set of vibration-dampening corners included that lends compatibility with 120mm fan mounts (105mm screw spacing). This enables use of 140mm fans on many CPU coolers. - Available in 120mm and 140mm fan sizes
Producent
Productnummer
2483528
Model
FD-FAN-VENT-HP14-PWM-BK
EAN
7350041083368
Naar de website van de producent
Geschikte locatie
Computer behuizing
Soort
Ventilator
Ventilator diameter
14 cm
Rotatiesnelheid ( min)
400 RPM
Rotatiesnelheid ( max)
1500 RPM
Geluidsniveau (lage snelheid)
10 dB
Geluidsniveau (hoge snelheid
30,1 dB
Maximum luchtstroom
78,1 cfm
Luchtstroom
132,7 m³/uur
Maximum luchtdruk
1,94 mmH2O
Mean time between failures (MTBF)
150000 uur
Kleur van het product
Zwart, Grijs
Fan connector
4-pin
Netvoeding
1,4 W
Spanning
12 V
Stroom (max.)
0,2 A
Breedte
140 mm
Diepte
140 mm
Hoogte
25 mm
Gewicht
300 g
Fan dikheid
2,5 cm
Snoerlengte
0,5 m
Breedte verpakking
167 mm
Diepte verpakking
142 mm
Hoogte verpakking
30 mm
Bearing technologie
FDB
Montage gatenpatroon (H x V)
125 x 125 mm
Prestatie
Geschikte locatie
Computer behuizing
Soort
Ventilator
Ventilator diameter
14 cm
Rotatiesnelheid ( min)
400 RPM
Rotatiesnelheid ( max)
1500 RPM
Geluidsniveau (lage snelheid)
10 dB
Geluidsniveau (hoge snelheid
30,1 dB
Maximum luchtstroom
78,1 cfm
Luchtstroom
132,7 m³/uur
Maximum luchtdruk
1,94 mmH2O
Mean time between failures (MTBF)
150000 uur
Design
Kleur van het product
Zwart, Grijs
Fan connector
4-pin
Energie
Netvoeding
1,4 W
Spanning
12 V
Stroom (max.)
0,2 A
Gewicht en omvang
Breedte
140 mm
Diepte
140 mm
Hoogte
25 mm
Gewicht
300 g
Fan dikheid
2,5 cm
Snoerlengte
0,5 m
Breedte verpakking
167 mm
Diepte verpakking
142 mm
Hoogte verpakking
30 mm
Technische details
Bearing technologie
FDB
Overige specificaties
Montage gatenpatroon (H x V)
125 x 125 mm
