Productnummer: 2483527

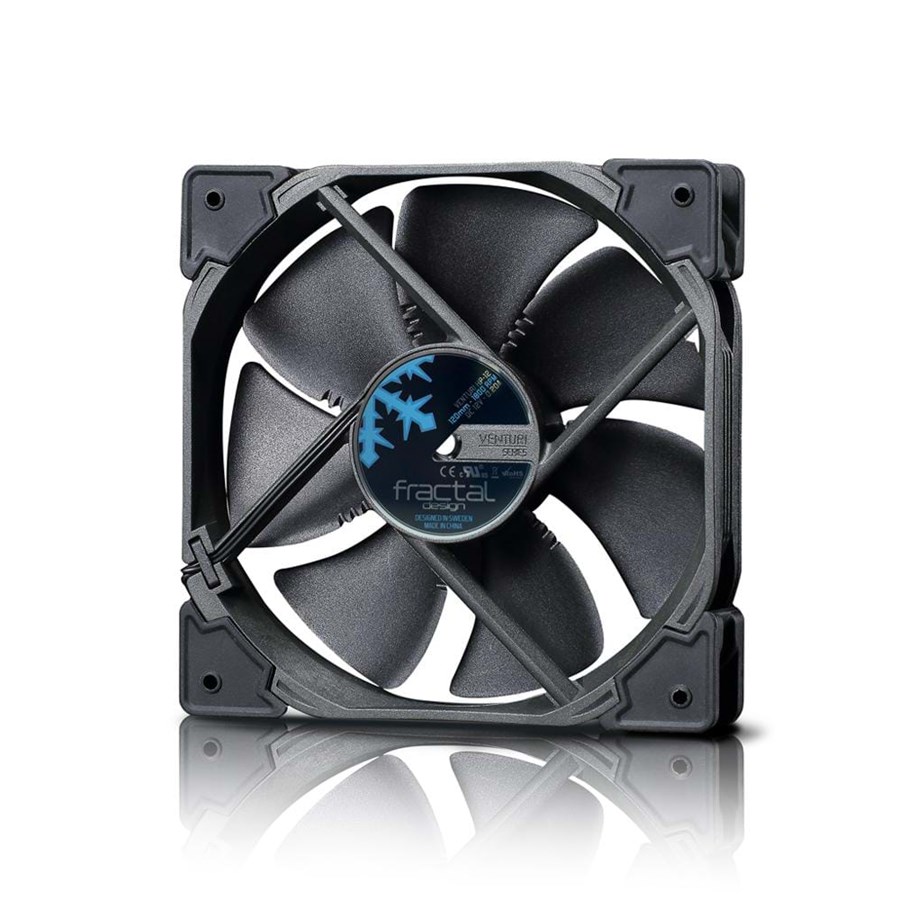

Fractal Design Fan Venturi HP-12 - Case ventilator - 120mm - Black - 31 dBA

Cabinet cooler, size: 120mm x 120mm x 25mm (HxWxD), noise level: max 31.7 dBA, air flow: max 61.4 CFM, fan RPM: max 1800 ±10%, PWM controlled, 4 pin motherboard connection, black

22,07 € 18,24 € excl. BTW
Goedkoopste privé verzending 4,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

The Venturi High Pressure Series PWM fans, HP-12 and HP-14, are optimized for high-restriction airflow scenarios, making them an excellent choice for usage on large heatsinks, on radiators, or in other highly restrictive scenarios. Designed with a variety of performance-increasing and noise-reducing features, these fans can move an amazing amount of air through restricted environments compared to other fans at the same, minimal noise level. The HP-14 comes with two sets of solid vibration-dampening rubber corners: one for standard 140mm fan hole spacing (125mm) and one compatible with the standard 120mm hole spacing (105mm). The Venturi High Pressure Series PWM fans are ideal for those looking for a perfect balance between high performance and low noise built from sturdy, high quality materials.Key features- Featuring true FDB-bearings, providing silent operation coupled with a long lifespan- Equipped with a counter-balanced magnet that reduces the axial tension on the bearing- Features integrated vibration-dampening corners made from solid high-quality synthetic rubber- Dense sturdy construction made from high-grade glass fiber reinforced thermoplastic polymer-Fan geometry is optimized for high pressure delivering high-performance results in highly restrictive usage scenarios such as in use with large dense heatsinks or water cooling radiators. -Featuring PWM control with a very wide speed range starting at only 400RPM (400 +/-100 RPM), ideal for CPU heatsinks or radiators where the motherboard can control fan speed based on CPU temperature.-Aerodynamically shaped thin stator struts reduce noise and unwanted turbulence. -Strategically placed notches on blades further reduce and diffuse any humming noise produced when blades pass stator struts -The trip wire technology introduces micro-turbulent layer that combats elements negatively affecting performance resulting in quieter operation Comes With A PWM Y-cable For Connecting Additional Fans To A Single PWM Header On Your Motherboard Or PWM Fan Controller -140mm fans come with an additional set of vibration-dampening corners are included that lends compatibility with 120mm fan mounts (105mm screw spacing). This enables the use of 140mm fans on many CPU coolers.-Available in 120mm and 140 mm fan sizes

Producent
Productnummer
2483527
Model
FD-FAN-VENT-HP12-PWM-BK
EAN
7350041083344
Naar de website van de producent
Geschikte locatie
Computer behuizing
Soort
Ventilator
Ventilator diameter
12 cm
Rotatiesnelheid ( min)
400 RPM
Rotatiesnelheid ( max)
1800 RPM
Geluidsniveau (lage snelheid)
10 dB
Geluidsniveau (hoge snelheid
31,7 dB
Maximum luchtstroom
61,4 cfm
Luchtstroom
104,3 m³/uur
Maximum luchtdruk
2,3 mmH2O
Mean time between failures (MTBF)
150000 uur
Kleur van het product
Zwart, Grijs
Fan connector
4-pin
Netvoeding
1 W
Spanning
12 V
Stroom (max.)
0,2 A
Breedte
120 mm
Diepte
120 mm
Hoogte
25 mm
Gewicht
250 g
Fan dikheid
2,5 cm
Snoerlengte
0,5 m
Breedte verpakking
142 mm
Diepte verpakking
122 mm
Hoogte verpakking
30 mm
Bearing technologie
FDB
Montage gatenpatroon (H x V)
105 x 105 mm
Land van herkomst
Zweden

Prestatie

Geschikte locatie
Computer behuizing
Soort
Ventilator
Ventilator diameter
12 cm
Rotatiesnelheid ( min)
400 RPM
Rotatiesnelheid ( max)
1800 RPM
Geluidsniveau (lage snelheid)
10 dB
Geluidsniveau (hoge snelheid
31,7 dB
Maximum luchtstroom
61,4 cfm
Luchtstroom
104,3 m³/uur
Maximum luchtdruk
2,3 mmH2O
Mean time between failures (MTBF)
150000 uur

Design

Kleur van het product
Zwart, Grijs
Fan connector
4-pin

Energie

Netvoeding
1 W
Spanning
12 V
Stroom (max.)
0,2 A

Gewicht en omvang

Breedte
120 mm
Diepte
120 mm
Hoogte
25 mm
Gewicht
250 g
Fan dikheid
2,5 cm
Snoerlengte
0,5 m
Breedte verpakking
142 mm
Diepte verpakking
122 mm
Hoogte verpakking
30 mm

Technische details

Bearing technologie
FDB

Overige specificaties

Montage gatenpatroon (H x V)
105 x 105 mm
Land van herkomst
Zweden
