Productnummer: 3216236

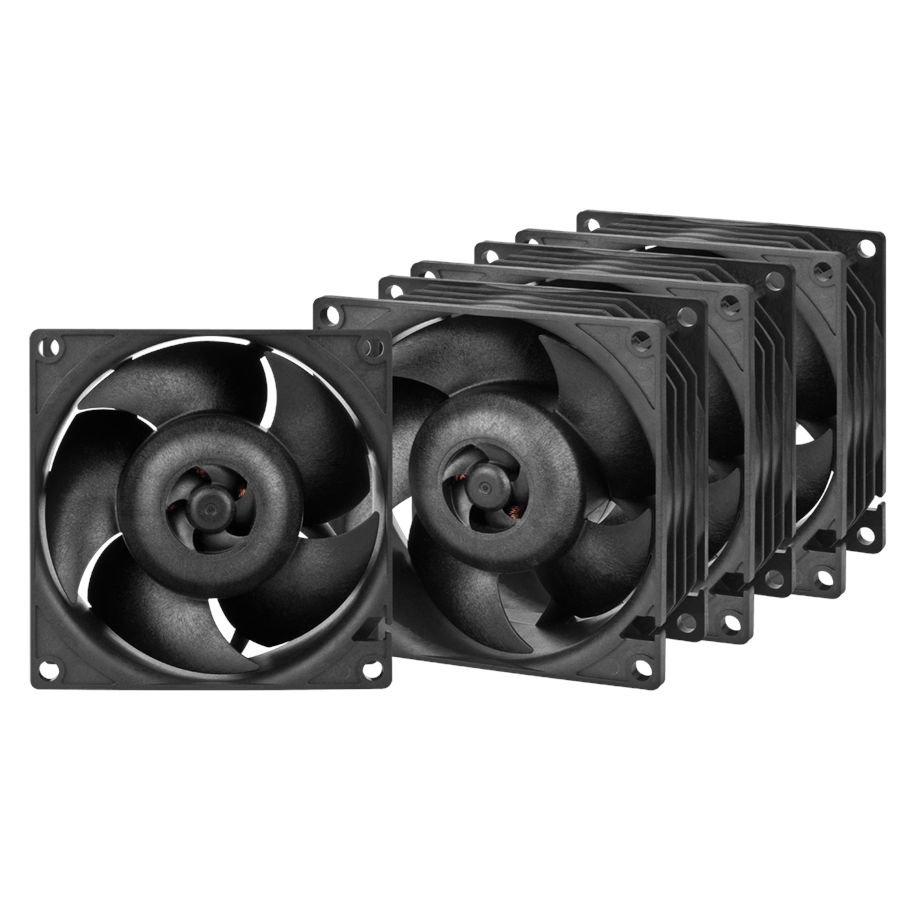

Arctic Server Fan S8038-10K - 4-pack - Case ventilator - 80mm - Black
Ventilator, 80mm x 80mm x 28mm (Hoogte x breedte x diepte), lucht doorstroom max 102 CFM, max statische druk 51 mmH2O, fan snelheid: 500 - 10000 ±10% RPM, lager type: Two ball bearing, moederboord aansluiting: 4 (2510)-pins, multipack met 4 fans, kleur zwart.
Op voorraad
39,99 €
33,05 € excl. BTW
Goedkoopste privé verzending 4,99 €
14 stks
Op voorraad - 2-3 werkdagen levertijd
The ARCTIC S8038-10K case fan is designed to deliver powerful performance in various environments. With a fan diameter of 80 mm and a height of 38 mm, this server fan operates efficiently within a wide temperature range, from -10°C to 70°C. Its rotation speed can reach up to 10,000 rpm, generating an air flow of 102 cfm, translating to approximately 173.3 m³/h. The dual ball bearing construction enhances durability and ensures optimal operation over time, making this fan a reliable choice for any cooling application. Incorporating PWM control, the fan adjusts its speed dynamically according to system demands, which helps to reduce noise levels while maintaining efficient cooling. This feature, combined with its consistent air pressure of 51 mm, makes it suitable for high-performance tasks. The ARCTIC S8038-10K comes with essential accessories, including mounting screws and an impeller sticker, ensuring easy installation and setup in various systems.
Producent
Productnummer
3216236
Model
ACFAN00291A
EAN
4895213704311
Naar de website van de producent
Productbeschrijving
ARCTIC S8038-10K - ventilatorhuis
Producttype
Ventilatorhuis
Aantal in verpakking
4 (weergegeven specificaties zijn voor één artikel)
Inhoud pakket
16 montageschroeven, 4 impeller stickers
Diameter van koelventilator
80 mm
Hoogte ventilator
38 mm
Lager ventilator
Dubbele baldraagbalk
Rotatiesnelheid
500-10000 rpm
Luchtstroom
102 cfm
Stroomconnector
4-pin ventilatoraansluiting
Nominale spanning
12 V
Functies
PWM-controller
Afmetingen (BxDxH)
8 cm x 8 cm x 3.8 cm
Gewicht
151 g
Algemeen
Aantal in verpakking
4 (weergegeven specificaties zijn voor één artikel)
Producttype
Ventilatorhuis
Inhoud pakket
16 montageschroeven, 4 impeller stickers
Breedte
8 cm
Diepte
8 cm
Hoogte
3.8 cm
Gewicht
151 g
Verzendafmetingen (BxDxH)/gewicht
10.4 cm x 18.7 cm x 7.8 cm / 700 kg
Warmteopnemer & koeler
Diameter van koelventilator
80 mm
Hoogte ventilator
38 mm
Lager ventilator
Dubbele baldraagbalk
Rotatiesnelheid
500-10000 rpm
Luchtstroom
102 cfm
Luchtdruk
51 mm
Stroomconnector
4-pin ventilatoraansluiting
Nominale spanning
12 V
Startspanning
5.8 V
Nominale stroom
1.3 A
Kabellengte
30 cm
Functies
PWM-controller
Diversen
Conformiteitsnormen
EMC 2014/30/EU, EN 55032:2015/A11:2020/A1:2020, EN 55035:2017/A11:2020, EN 61000-4-2:2009, EN 61000-4-3:2020, RoHS 2011/65/EC, RoHS 2015/863/EU, UL 94 V-0, Directive 1907/2006/EC
Garantie van de fabrikant
Service & Support
Beperkte garantie: - 6 jaar
Omgevingsparameters
Min. gebruikstemperatuur
-10 °C
Max. gebruikstemperatuur
70 °C
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
