Productnummer: 3216305

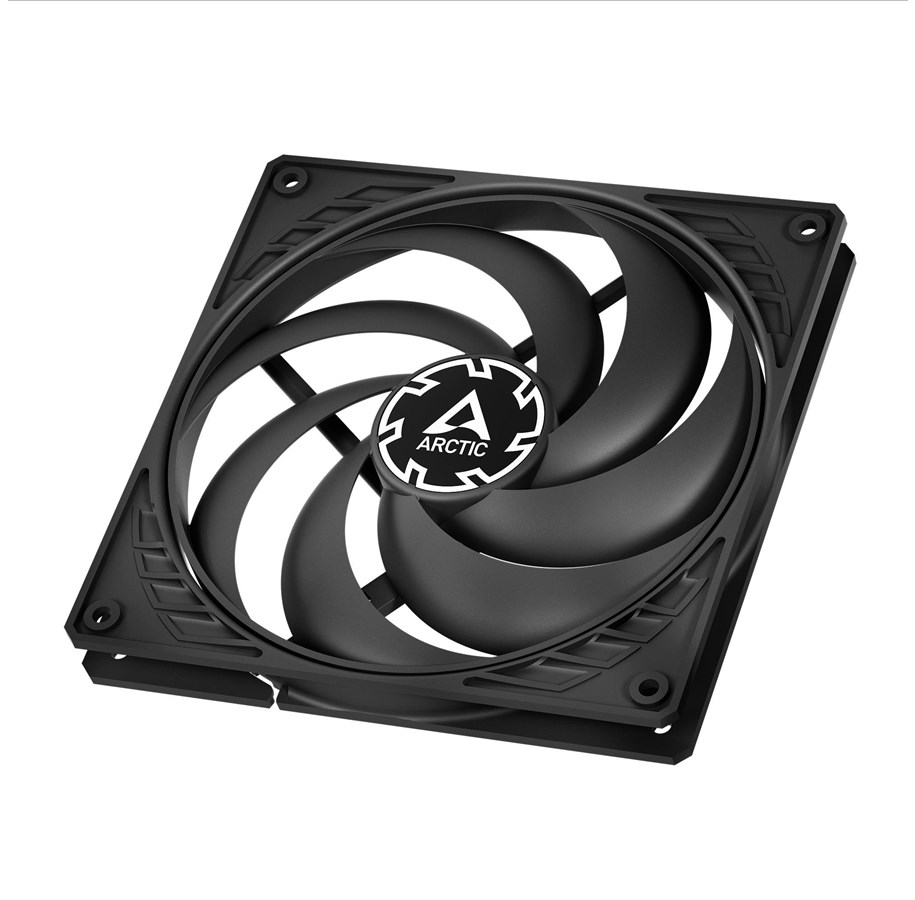

Arctic P14 Slim PWM PST - Case ventilator - 140mm - Black - 23 dBA

Ventilator, 140mm x 140mm x 16mm (Hoogte x breedte x diepte), geluidsniveau max 0.3 sone (∼ 22.5 dBa), lucht doorstroom max 52 CFM, max statische druk 1.55 mmH2O, fan snelheid: 150 - 1800 ±10% RPM, PWM gestuurd, lager type: Fluid Dynamic Bearing (FDB), moederboord aansluiting: 4-pins, kleur zwart.

Op voorraad
8,20 € 6,78 € excl. BTW
Goedkoopste privé verzending 4,99 €
15+ stks Op voorraad - 2-3 werkdagen levertijd

During the development of the P14, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 is particularly suitable for use on heatsinks and radiators.Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Producent
Productnummer
3216305
Model
ACFAN00268A
EAN
4895213703871
Naar de website van de producent
Geschikte locatie
Computer behuizing
Soort
Ventilator
Ventilator diameter
14 cm
Rotatiesnelheid ( min)
150 RPM
Rotatiesnelheid ( max)
1800 RPM
Geluidsniveau
0,3 sone
Maximum luchtstroom
52 cfm
Luchtstroom
88,35 m³/uur
Maximum luchtdruk
1,55 mmH2O
Pulsbreedtemodulatie-ondersteuning
Ja
Type lager
Vloeistof dynamisch lager (FDB)
Aantal per verpakking
1 stuk(s)
Bedrijfstemperatuur (T-T)
0 - 40 °C
Kleur van het product
Zwart
Fan connector
4-pin + 4-pin
Spanning
12 V
Startspanning
4 V
Fan stroom
0,19 A
Gewicht
109 g
Maten ventilator (b x d x h)
140 x 140 x 16 mm
Gewicht fan
109 g
Snoerlengte
0,48 m
Breedte verpakking
143 mm
Diepte verpakking
156 mm
Hoogte verpakking
17 mm
Inclusief schroeven
Ja
Aantal schroeven
4
Land van herkomst
China
Code geharmoniseerd systeem (HS)
84733080

Prestatie

Geschikte locatie
Computer behuizing
Soort
Ventilator
Ventilator diameter
14 cm
Rotatiesnelheid ( min)
150 RPM
Rotatiesnelheid ( max)
1800 RPM
Geluidsniveau
0,3 sone
Maximum luchtstroom
52 cfm
Luchtstroom
88,35 m³/uur
Maximum luchtdruk
1,55 mmH2O
Pulsbreedtemodulatie-ondersteuning
Ja
Type lager
Vloeistof dynamisch lager (FDB)
Aantal per verpakking
1 stuk(s)
Bedrijfstemperatuur (T-T)
0 - 40 °C

Design

Kleur van het product
Zwart
Fan connector
4-pin + 4-pin

Energie

Spanning
12 V
Startspanning
4 V
Fan stroom
0,19 A

Gewicht en omvang

Gewicht
109 g
Maten ventilator (b x d x h)
140 x 140 x 16 mm
Gewicht fan
109 g
Snoerlengte
0,48 m
Breedte verpakking
143 mm
Diepte verpakking
156 mm
Hoogte verpakking
17 mm

Inhoud van de verpakking

Inclusief schroeven
Ja
Aantal schroeven
4

Overige specificaties

Land van herkomst
China

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733080

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
