Productnummer: 3358446

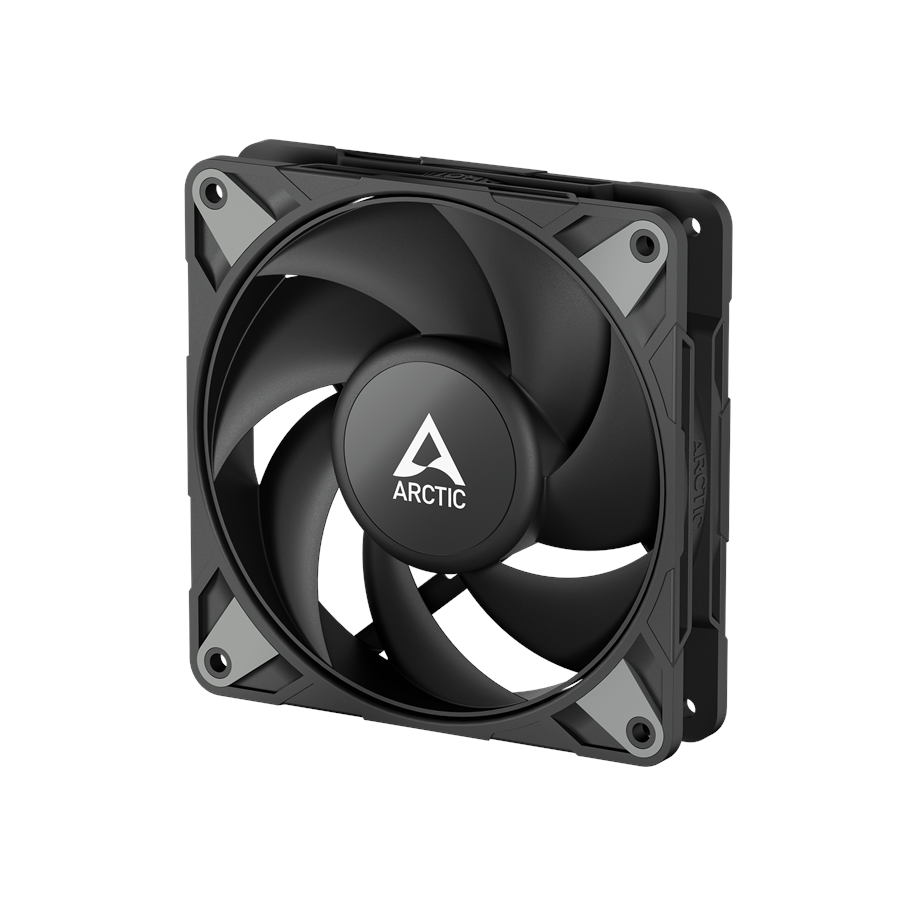

Arctic P12 Pro - Case ventilator - 120mm - Black

Ventilator, 120mm x 120mm x 25mm (Hoogte x breedte x diepte), lucht doorstroom max 77 CFM, max statische druk 6.9 mmH2O, fan snelheid: 600 - 3000 ±10% RPM, PWM gestuurd, lager type: Fluid Dynamic Bearing (FDB), , kleur zwart.

Op voorraad
8,55 € 7,07 € excl. BTW
Goedkoopste privé verzending 4,99 €
15+ stks Op voorraad - 2-3 werkdagen levertijd

The ARCTIC P12 Pro case fan is designed for optimal airflow and efficient performance. With a fan diameter of 120 mm and a rotation speed ranging from 600 to 3000 rpm, this fan provides an airflow of 77 cfm, ensuring temperature control in your system is maintained effectively. The sealed precision fluid bearing technology enhances durability while minimizing noise levels, which are as low as 25 dBA, making it suitable for quiet environments.

The fan features pulse-width modulation (PWM) support and reverse polarity protection, allowing for precise control over fan speeds and ensuring reliability during operation. It includes an optimized bearing-shaft design to improve performance and longevity. With a rated voltage of 12 V and a cable length of 40 cm, this product is suitable for a variety of setups. Additionally, it adheres to various compliance standards, ensuring it meets necessary environmental requirements.

Producent
Productnummer
3358446
Model
ACFAN00305A
EAN
4895265000072
Naar de website van de producent
Productbeschrijving
ARCTIC P12 Pro - ventilatorhuis
Producttype
Ventilatorhuis
Inhoud pakket
4 montageschroeven
Diameter van koelventilator
120 mm
Hoogte ventilator
25 mm
Lager ventilator
Vloeistof-dynamische lager
Rotatiesnelheid
600-3000 omw/min.
Luchtstroom
77 cfm
Geluidsniveau
25 dBA
Stroomconnector
4-pin ventilatoraansluiting
Nominale spanning
12 V
Functies
Sealed Precision Fluid Bearing (FDB), geoptimaliseerd lager-as ontwerp, geautomatiseerde balans, omgekeerde polariteitbescherming, PWM-ondersteuning (Pulse Width Modulation)
Afmetingen (BxDxH)
12 cm x 12 cm x 2.5 cm
Gewicht
183 g

Algemeen

Producttype
Ventilatorhuis
Inhoud pakket
4 montageschroeven
Breedte
12 cm
Diepte
12 cm
Hoogte
2.5 cm
Gewicht
183 g
Verzendafmetingen (BxDxH)/gewicht
12.5 cm x 12.7 cm x 3 cm / 224 g

Warmteopnemer & koeler

Diameter van koelventilator
120 mm
Hoogte ventilator
25 mm
Lager ventilator
Vloeistof-dynamische lager
Rotatiesnelheid
600-3000 omw/min.
Luchtstroom
77 cfm
Luchtdruk
6.9 mm
Geluidsniveau
25 dBA
Stroomconnector
4-pin ventilatoraansluiting
Nominale spanning
12 V
Startspanning
3.3 V
Nominale stroom
0.33 A
Kabellengte
40 cm
Functies
Sealed Precision Fluid Bearing (FDB), geoptimaliseerd lager-as ontwerp, geautomatiseerde balans, omgekeerde polariteitbescherming, PWM-ondersteuning (Pulse Width Modulation)

Diversen

Conformiteitsnormen
EN 55035:2017/A11:2020, REACH 2006/1907/EC, RoHS 2011/65/EU, EN 55032:2015/A11:2020/A1:2020, UKCA, EMC 2014/30/EU, RoHS 2015/863/EU

Garantie van de fabrikant

Service & Support
Beperkte garantie: - 6 jaar

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
