Productnummer: 3498204

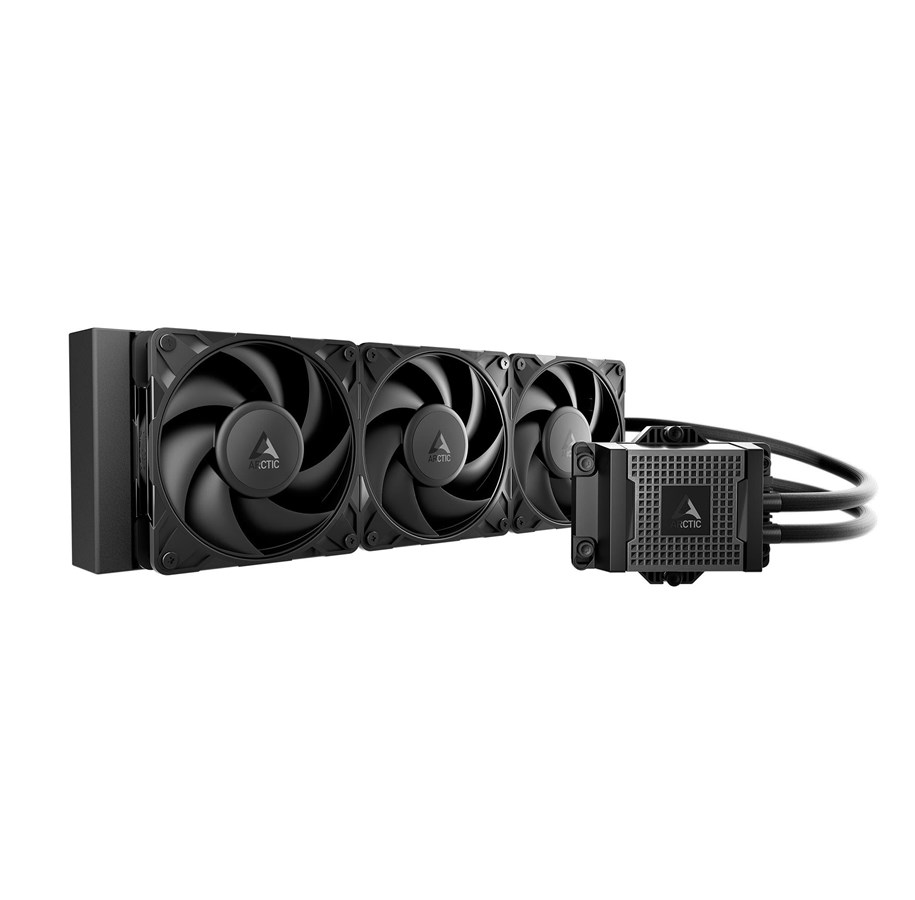

Arctic Liquid Freezer WS360-SP5

Workstation all-in-one CPU-waterkoeler Liquid Freezer WS360-SP5 is een all-in-one vloeistofkoeloplossing voor het AMD SP5-workstationplatform met platformspecifieke montage, high-performance ventilatoren, een workstation-waterblock en meegeleverde MX-7 koelpasta.

Ontworpen voor high-performance workstations, gebruikt hij een vast AMD SP5-montagesysteem voor optimale CPU-contactdruk en gebruiksvriendelijke installatie.

  • P12 Pro PST CO-ventilatoren met dubbele kogellagers voor continue 24/7 werking
  • Waterblock met microvinnen met hoge dichtheid, efficiënte kamerdoorstroming en duurzame pomp
  • EPDM-slangen met gevlochten mantel voor duurzaamheid en lekpreventie
  • Voert tot 800W aan CPU-warmte af bij een verbruik van 14.8W

Gebouwd voor veeleisende workstation-koeling, combineert hij efficiënte thermische prestaties met duurzame ARCTIC-componenten.

Op voorraad
174,99 € 144,62 € excl. BTW
Goedkoopste privé verzending 6,99 €
4 stks op voorraad - 2-3 werkdagen levertijd

Liquid Freezer WS360-SP5
Workstation All-in-One CPU Water Cooler

Outstanding Liquid Cooling for Workstations
The Liquid Freezer WS360-SP5 is an all-in-one liquid cooling solution designed for the AMD SP5 workstation platform. Featuring a specially mounting system for easy installation, it delivers outstanding cooling performance to meet the demands of high-performance workstations.

Designed for Superior Cooling, optimized for Workstations
Thanks to its radiator design and high-performance fans, the Liquid Freezer WS360-SP5 delivers outstanding cooling under heavy loads while keeping noise levels comparable to competing solutions.

P12 Pro PST CO – Performance & Durability
The ARCTIC's P12 Pro PST CO pair the High Static‑Pressure Performance of the P12 Pro with Dual Ball Bearings engineered for continuous 24/7 operation, ensuring durability and extended lifespan.

Tailored Made for SP5
A fixed mounting system tailored for AMD SP5 ensures optimal contact pressure on the CPU and user-friendly installation.

Water Block Design for Workstations
The water block is a brand‑new design with high‑density micro‑fins, efficient chamber flow, and a durable pump for long‑lasting reliability.

Premium-Class Radiator
Liquid coolers with 38mm radiators offer superior thermal dissipation, and we continued integrating this design into our workstation models.

High Quality EPDM Tubing
EPDM tubing with braided sheathing to ensure durability and prevent leakage, protecting your components is our highest priority.

Efficiency Engineered to Reduce Ownership Costs
Engineered for an outstanding Power Efficiency Ratio (PER). Capable of dissipating up to 800W of CPU Heat while consuming only 14.8W, it significantly reduces the Total Cost of Ownership (TCO) for high-performance workstations.

Xtender – Xtend your Potential
The Xtender is a high-airflow case designed for maximum air circulation. It accommodates motherboards up to the EATX format with a width of 285 mm and graphics cards up to 482 mm in length, making it suitable for workstation use.

Case accessoires

Producent
Productnummer
3498204
Model
ACFRE00200A
Naar de website van de producent
Geschikte locatie
Processor
Soort
Alles-in-één vloeistofkoeler
Ventilator diameter
12 cm
Supported processor sockets
Socket SP5
Maximum luchtstroom
77 cfm
Luchtstroom
131 m³/uur
Maximum luchtdruk
6,9 mmH2O
Pulsbreedtemodulatie-ondersteuning
Ja
Type lager
Dubbele kogellager
Aantal per verpakking
1 stuk(s)
Pomp motor snelheid (min)
800 RPM
Pomp motor snelheid (max)
3000 RPM
Fan snelheid (min)
600 RPM
Fan snelheid (max)
3000 RPM
Kleur van het product
Zwart
Radiator materiaal
Aluminium
Basis plaat materiaal
Koper
Aantal ventilatoren
3 ventilator(en)
Materiaal vinnen
Koper
Verlichtings-led
Nee
Fan connector
3-pin/4-pin
Display-type
Niet van toepassing
Pomp voltage
12 V
Pomp stroom
350 mA
Fan voltage
12 V
Fan stroom
0,33 A
Radiator breedte
12 cm
Radiator diepte
39,8 cm
Radiator hoogte
3,8 cm
Buis lengte
45 cm
Slang diameter
1,24 cm
Binnendiameter van buis
6 mm
Gewicht
2,15 kg
Maten ventilator (b x d x h)
120 x 120 x 25 mm
Breedte verpakking
156 mm
Diepte verpakking
431 mm
Hoogte verpakking
154 mm
Gewicht verpakking
2,6 kg
Type verpakking
Doos

Prestatie

Geschikte locatie
Processor
Soort
Alles-in-één vloeistofkoeler
Ventilator diameter
12 cm
Supported processor sockets
Socket SP5
Maximum luchtstroom
77 cfm
Luchtstroom
131 m³/uur
Maximum luchtdruk
6,9 mmH2O
Pulsbreedtemodulatie-ondersteuning
Ja
Type lager
Dubbele kogellager
Aantal per verpakking
1 stuk(s)
Pomp motor snelheid (min)
800 RPM
Pomp motor snelheid (max)
3000 RPM
Fan snelheid (min)
600 RPM
Fan snelheid (max)
3000 RPM

Design

Kleur van het product
Zwart
Radiator materiaal
Aluminium
Basis plaat materiaal
Koper
Aantal ventilatoren
3 ventilator(en)
Materiaal vinnen
Koper
Verlichtings-led
Nee
Fan connector
3-pin/4-pin
Display-type
Niet van toepassing

Energie

Pomp voltage
12 V
Pomp stroom
350 mA
Fan voltage
12 V
Fan stroom
0,33 A

Gewicht en omvang

Radiator breedte
12 cm
Radiator diepte
39,8 cm
Radiator hoogte
3,8 cm
Buis lengte
45 cm
Slang diameter
1,24 cm
Binnendiameter van buis
6 mm
Gewicht
2,15 kg
Maten ventilator (b x d x h)
120 x 120 x 25 mm
Breedte verpakking
156 mm
Diepte verpakking
431 mm
Hoogte verpakking
154 mm
Gewicht verpakking
2,6 kg

Inhoud van de verpakking

Type verpakking
Doos
