Productnummer: 2959367

B.E.G. Pd3-1c-sm

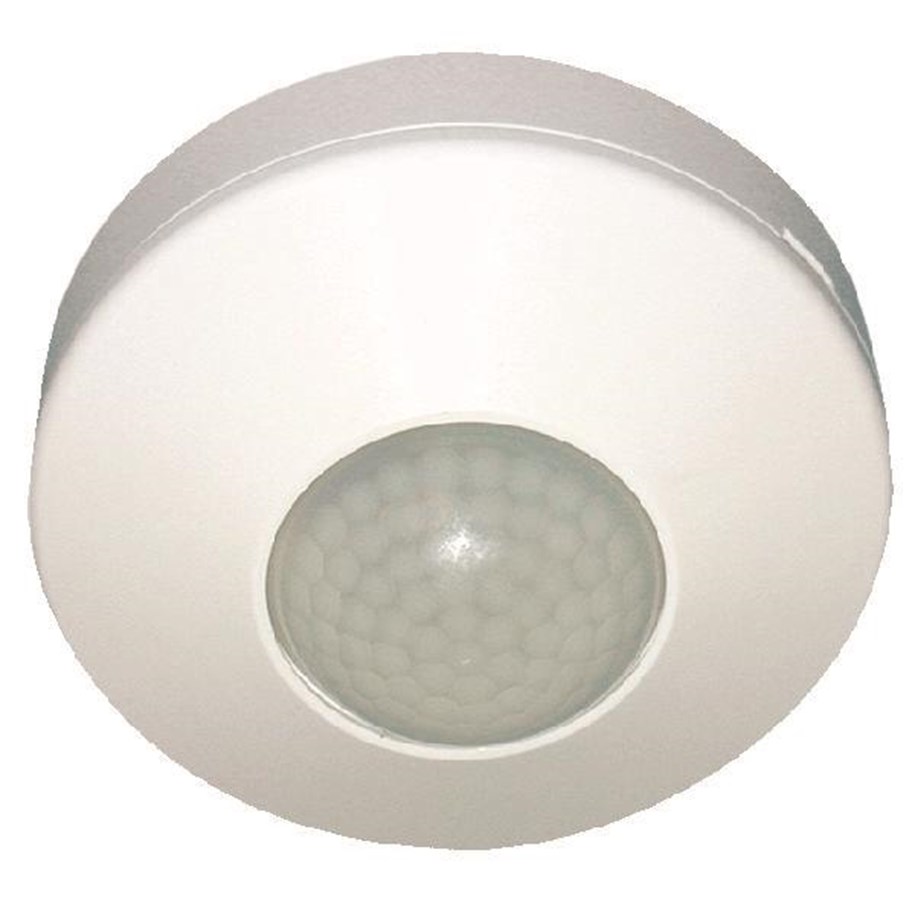

Product: PD3-1C-P (92194) Motion detector LUXOMAT® PD3-1C-P for surface mounting on the ceiling, PL-box and the wall. A channel for ignition of light. Thick relay for ignition of lamps with high consumption. In particular, an optical system for detecting the slightest movements. Series production impulse function. Application examples: monitoring of smaller surfaces such. stairwells, private garages, lobbies, restrooms. Power supply voltage: 230V ~ ± 10% Detection range: 360 ° Range (around) m: - across Ø 10.00 m - head Ø 6.00 m. Protection: IP44 / Class II / CE Dimensions: Ø 106 x H 53 mm. Ambient temperature: -25 ° C to + 50 ° C. Housing: UV-resistant polycarbonate high-quality. Channel 1 Max Load: 2300 W, power factor measure = 1, 1150 VA, power factor measure = 0.5. Time settings: 30 sec. - 30 min. or pulsed. Brightness Value: 10-2000 Lux. Power consumption:> 0.5W

Lees meer
Op voorraad
42,86 € 35,42 € excl. BTW
Goedkoopste privé verzending 4,99 €
1 stks Op voorraad - 2-3 werkdagen levertijd

Motion sensor PD3-1C-P, Surface-mounted product description: • LUXOMAT® PD3-1C-P motion sensor for wall mounting, surface-mounted on ceiling or PL box. • Powerful relay for switching high-consumption lamps. • Special optical system for detecting the slightest movements. • Application examples: monitoring small areas such as stairwells, single garages, entrances and toilets. Technical specifications: Supply voltage (V AC): 230Color: white RAL 9010Range (M): 10Mounting height: 2.5

Producent
Productnummer
2959367
Model
92194
EAN
4007529921942

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
