Productnummer: 2871387

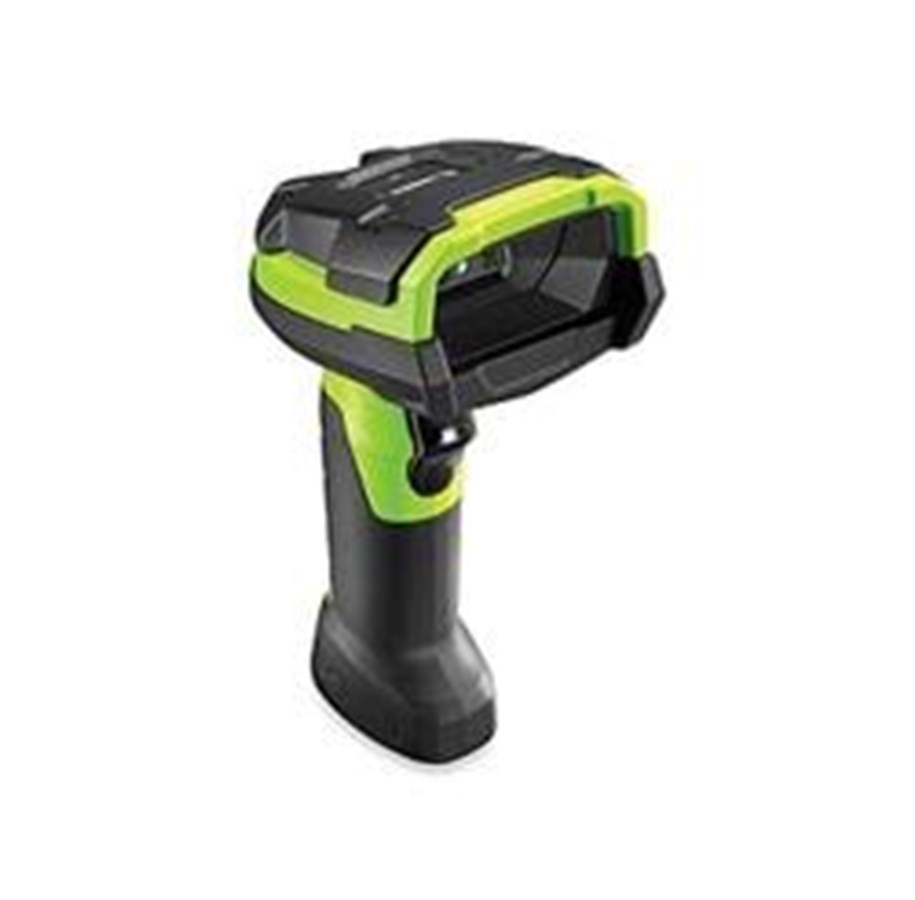

Zebra DS3608-HD - 2D Handheld Barcode Scanner

Streepjescodescanner, handheld, gecodeerd

480,78 € 397,34 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 6 - 7 werkdagen levertijd

As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-HD corded and DS3678-HD cordless scanner is ready for one of the world's toughest environments - the electronics manufacturing production line.

You get the truly unstoppable performance you need to prevent the high cost of unplanned production line downtime. Your workers get first-time every time capture of the many types of small and high-density barcodes printed on the components in the products you make.

And since these scanners also capture standard barcodes in virtually any condition, you get a real value - unstoppable performance in a single flexible device that can meet scanning needs from the assembly line to the warehouse.

Producent
Productnummer
2871387
Model
DS3608-HD20003VZWW
EAN
5706998610362
Naar de website van de producent
Productbeschrijving
Zebra DS3608-HD - streepjescodescanner
Type
Streepjescodescanner - handheld - gecodeerd
Kleur
Industrieel groen
Min. streepjesbreedte
3 mil
Sensorresolutie
1280 x 960
Connectiviteit
Met bekabeling
Afmetingen (BxDxH)
7.6 cm x 13.2 cm x 18.5 cm
Gewicht
309 g

Algemeen

Type
Streepjescodescanner - handheld
Kleur
Industrieel groen

Streepjescode

Min. streepjesbreedte
3 mil
Sensorresolutie
1280 x 960
Max. werkafstand
35 cm
Scheefheid (graden)
60
Pitch (graden)
60
Print Contrast Signaal (PCS)
15%
Decodeermogelijkheid
Aztec-code, China Han Xin Code, Codabalk, Code 11, Code 128, Code 3 van 5, Code 39, Code 93, Data Matrix, GS1 DataBar, industrieel gebruik, 2 van 5, Italiaanse Pharma-code, MaxiCode, Micro QR-code, MicroPDF417, MSI-Plessey, NW-7, PDF417, QR-code, TLC39, UPC/EAN aanvullingen
TTL-decodering
Gecodeerd
Connectiviteit
Met bekabeling
OK-melding
Pieper, LED-indicator, trilling
Functies
Verstevigd

Diversen

Conformiteitsnormen
IP67, EN 50581:2012, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, RoHS, IEC 60950-1:2005 + A1:2009 + A2:2013, CAN/CSA C22.2 No. 60950-1-07, UL 60950-1 Second Edition, CU, EN 62471:2008, IEC 62471:2006, UL, VDE, EN 55022:2010/AC:2011, EN 55024:2010, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-6-2, EN 60601-1-2:2007, EN 61000-3-3:2013, FCC CFR47 Part 15 B Class B, ICES-003 issue 5 Class B, IEC 60601-1-2:2007

Afmetingen & gewicht

Breedte
7.6 cm
Diepte
13.2 cm
Hoogte
18.5 cm
Gewicht
309 g

Garantie van de fabrikant

Service & Support
Beperkte garantie - 3 jaar

Omgevingsparameters

Min. gebruikstemperatuur
-30 °C
Max. gebruikstemperatuur
50 °C
Luchtvochtigheidsgraad bij gebruik
5 - 95% (niet-condenserend)
Valspecificatie
2,4 m tot beton
