Productnummer: 2446406

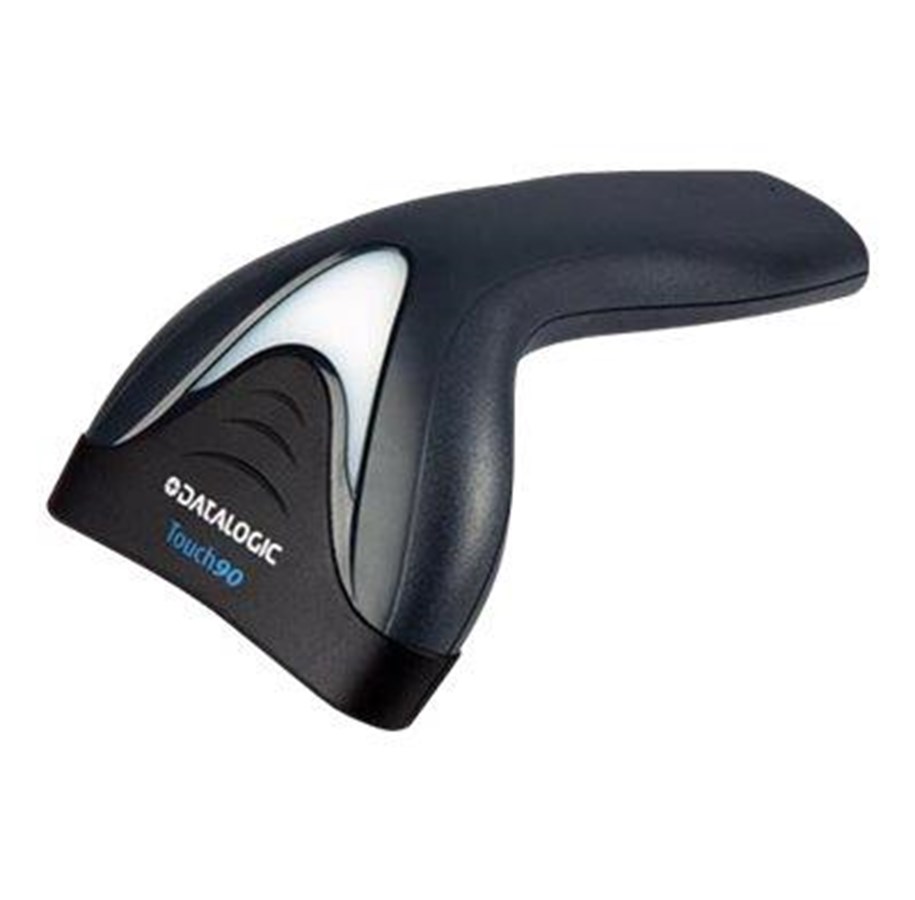

Datalogic TD1100 90 Lite - 1D Wired Barcode Scanner (Scanner Only)
Streepjescodescanner, handheld, 256 scan/sec., gecodeerd, toetsenbordwig, RS-232
53,34 €
44,08 € excl. BTW
Goedkoopste privé verzending 4,99 €
Bestelproduct, 8 - 9 werkdagen levertijd
The Touch TD1100 series of linear imaging contact readers represent the Datalogic ADC solution for customers who require a cost-effective solution for close contact bar code reading without sacrificing quality and performance.
Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes.
Small, lightweight and low on energy consumption, the Touch TD1100 readers continue to provide robustness and a 1.5 m drop resistance, which is typically included in a higher range of products.
An innovative 'read-thru' holder provides the Touch TD1100 readers with hands-free reading capability on documents or small items. Datalogic's Aladdin configuration software provides user-friendly features that simplify the start-up procedure, even for inexperienced users.
Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes.
Small, lightweight and low on energy consumption, the Touch TD1100 readers continue to provide robustness and a 1.5 m drop resistance, which is typically included in a higher range of products.
An innovative 'read-thru' holder provides the Touch TD1100 readers with hands-free reading capability on documents or small items. Datalogic's Aladdin configuration software provides user-friendly features that simplify the start-up procedure, even for inexperienced users.
Systeemaccessoires
-
14,33 €
Producent
Productnummer
2446406
Model
TD1170-BK-90
EAN
5711045665745
Naar de website van de producent
Productbeschrijving
Datalogic Touch TD1100 90 Light - streepjescodescanner
Type
Streepjescodescanner - handheld - toetsenbordwig, RS-232 - gecodeerd
Kleur
Zwart
Min. streepjesbreedte
4 mil
Breedte scanveld
15 cm
Scanonderdeeltype
Zichtbare laserdiode
Scansnelheid
256 scan/sec.
Connectiviteit
Met bekabeling
Afmetingen (BxDxH)
6.7 cm x 10.4 cm x 17 cm
Gewicht
153 g
Algemeen
Type
Streepjescodescanner - handheld
Kleur
Zwart
Streepjescode
Interfacetype
Toetsenbordwig, RS-232
Min. streepjesbreedte
4 mil
Breedte scanveld
15 cm
Scanonderdeeltype
Zichtbare laserdiode
Golflengte lichtbron
640 nm
Scanmodus
Éénfasig
Scansnelheid
256 scan/sec.
Scheefheid (graden)
70
Pitch (graden)
65
Print Contrast Signaal (PCS)
25%
Decodeermogelijkheid
Code 39, GS1 DataBar, EAN/JAN-13, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked
TTL-decodering
Gecodeerd
Connectiviteit
Met bekabeling
OK-melding
Pieper, LED-indicator
Functies
ESD-veilig
Uitbreiding / Aansluiting
Interfaces
1 x toetsenbord wedge / RS-232C
Diversen
Conformiteitsnormen
RoHS, IP30
Stroom
Elektrische stroom vereist
20 mA (bedrijfsgereed), 100 mA (typisch)
Software
Software meegeleverd
Stuurprogramma's & hulpprogramma's, Datalogic Aladdin, OPOS/JavaPOS Drivers
Afmetingen & gewicht
Breedte
6.7 cm
Diepte
10.4 cm
Hoogte
17 cm
Gewicht
153 g
Garantie van de fabrikant
Service & Support
Beperkte garantie - 5 jaar
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
50 °C
Luchtvochtigheidsgraad bij gebruik
5 - 95% (niet-condenserend)
Valspecificatie
1,5 m tot beton
