Productnummer: 2788285

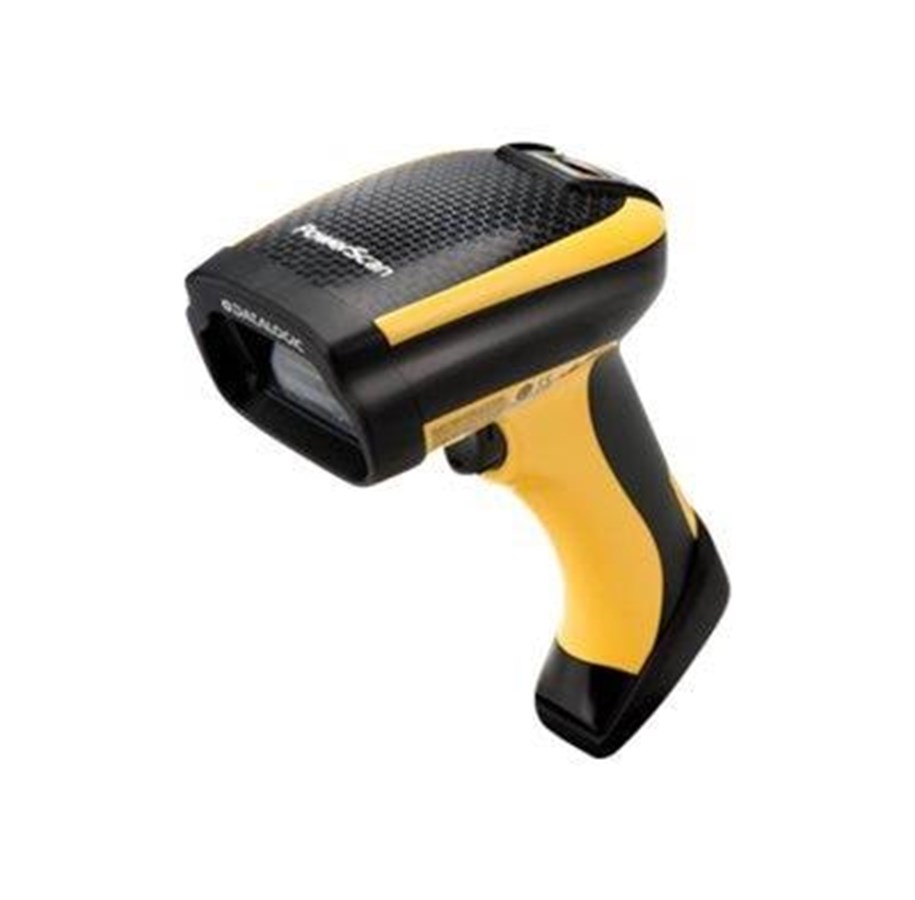

Datalogic PowerScan

Streepjescodescanner, handheld, 2D-imager, gecodeerd, interfacekabel benodigd

1.093,91 € 904,06 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 6 - 7 werkdagen levertijd

Warehouses, logistic centers and manufacturing plants depend on speed and reliability when managing goods and tracking merchandise in order to improve efficiency while reducing costs. Datalogic's PowerScan PD9531 area imager is the perfect answer for these applications.An intuitive and effortless scanning experience is the target of the PowerScan 9500 family. It combines omnidirectional reading capabilities, which is typical in all area imaging scanners, with outstanding optical characteristics. The result is a scanner that is able to read any kind of bar code, regardless of the orientation, from contact to over 1.0 m / 3.3 ft, depending on the bar code resolution. In addition, the PowerScan PD9531 area imager includes Datalogic's modern decoding software that guarantees snappy reading in any type of environment. Aim, trigger, decode: it is that simple!User comfort is guaranteed because of the scanner ergonomics, consisting of the handle shape, a well-balanced weight and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement or rotation which can tire any user during long shifts. Additionally, the PowerScan 9531 area imager uses a soft-pulsed white illumination light resulting in reduced flashes, which is very gentle on the eyes and less troublesome to the operator during scan-intensive applications.

Producent
Productnummer
2788285
Model
PD9531-DPM
Naar de website van de producent
Productbeschrijving
Datalogic PowerScan PD9531-DPM - streepjescodescanner
Type
Streepjescodescanner - handheld - interfacekabel benodigd - gecodeerd
Kleur
Zwart, geel
Min. streepjesbreedte
2.5 mil
Scanonderdeeltype
2D-imager
Connectiviteit
Met bekabeling
Stroom
DC 5 V
Afmetingen (BxDxH)
7.4 cm x 11 cm x 21.2 cm
Gewicht
330 g

Algemeen

Type
Streepjescodescanner - handheld
Kleur
Zwart, geel

Streepjescode

Interfacetype
Interfacekabel benodigd
Min. streepjesbreedte
2.5 mil
Scanonderdeeltype
2D-imager
Golflengte lichtbron
630-680 nm
Scanmodus
Éénfasig
Max. werkafstand
110 cm
Scheefheid (graden)
40
Pitch (graden)
40
Print Contrast Signaal (PCS)
15%
Decodeermogelijkheid
EAN/JAN, industrieel gebruik, 2 van 5, Code 39, ISBT 128, IATA, ISBN, GS1 DataBar, QR-code, MaxiCode, Aztec-code, Code 32, Code 39 full ASCII, UPC-A, UPC-E, MicroPDF417, Codabalk, Code 128, Code 11, Geïnterlinieerd 2 van 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Australische Post, Chinese Post, Japanse Post, Kix (Nederlandse) Post, MacroPDF417, Royal Mail, Micro QR-code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Swedish Post, Standard 2 of 5, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, Portuguese Post
TTL-decodering
Gecodeerd
Connectiviteit
Met bekabeling
OK-melding
Pieper, LED-indicator
Functies
Gestart, beelden opnemen, verstevigd, Datalogic Three Green Lights (3GL)

Diversen

Conformiteitsnormen
FCC Klasse B-gecertifieerd, VCCI, BSMI, GOST, NOM, IEC 60950, UL 60950, CSA 22.2 No. 60950, ICES-003 Class B, EMC, FCC Part 15, IC, RoHS, Laser Class 2, KCC, REACH, EN 60825-1, IP65

Stroom

Voltage
DC 5 V
Elektrische stroom vereist
335 mA (in bedrijf), 180 mA (standby)

Afmetingen & gewicht

Breedte
7.4 cm
Diepte
11 cm
Hoogte
21.2 cm
Gewicht
330 g

Garantie van de fabrikant

Service & Support
Beperkte garantie - 3 jaar

Omgevingsparameters

Min. gebruikstemperatuur
-20 °C
Max. gebruikstemperatuur
50 °C
Luchtvochtigheidsgraad bij gebruik
0 - 95% (niet condenserend)
Valspecificatie
2 m

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
