Productnummer: 2888378

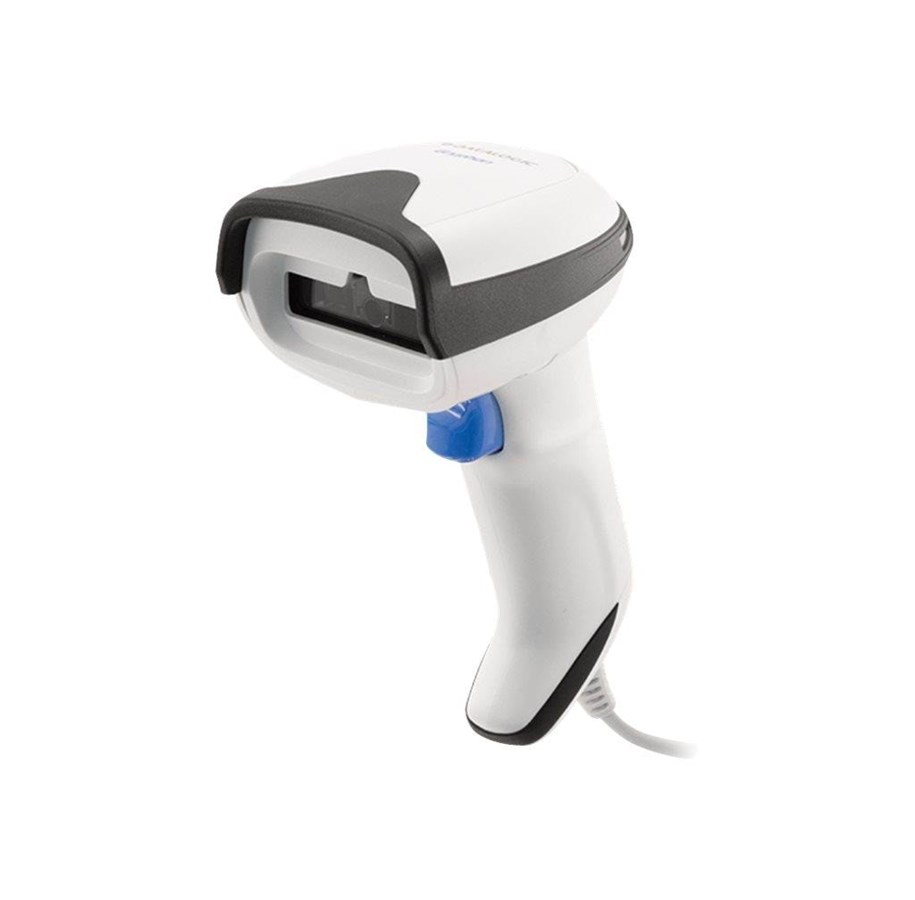

Datalogic Gryphon I

Kit, streepjescodescanner, handheld, 400 scan/sec., gecodeerd, USB

112,88 € 93,29 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 8 - 9 werkdagen levertijd

The Gryphon 4200 series represents the premium range of 1D hand held scanners from Datalogic for general purpose applications. Designed to provide the best-in-class reading performance, the Gryphon 4200 readers' ability to capture bar codes from near to far, to read both high-density and low-resolution codes, to decode hard-to-read, poorly printed or damaged codes and to easily read bar codes from mobile devices simplifies all applications. Ideal for hand held reading, the Gryphon 4200 utilizes Datalogic's Motionix motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the 'ready-to-read' scanning mode. Datalogic's distinctive 'soft line viewfinder' helps the operator to easily target the code to be read, making it easier and faster to point, shoot and decode the proper label, reducing accidental reads in a multiple bar code situation.

Producent
Productnummer
2888378
Model
GD4220-WHK1
Naar de website van de producent
Productbeschrijving
Datalogic Gryphon I GD4220 - Kit - streepjescodescanner
Type
Streepjescodescanner - handheld - USB - gecodeerd
Kleur
Wit
Min. streepjesbreedte
3 mil
Scanonderdeeltype
CCD - dubbele LED
Scansnelheid
400 scan/sec.
Connectiviteit
Met bekabeling
Stroom
DC 5 V
Afmetingen (BxDxH)
6.8 cm x 10.9 cm x 16.6 cm
Gewicht
163 g

Algemeen

Type
Streepjescodescanner - handheld
Kleur
Wit

Streepjescode

Interfacetype
USB
Min. streepjesbreedte
3 mil
Scanonderdeeltype
CCD - dubbele LED
Golflengte lichtbron
612-630 nm
Scanmodus
Éénfasig
Scansnelheid
400 scan/sec.
Max. werkafstand
147 cm
Scheefheid (graden)
65
Pitch (graden)
65
Print Contrast Signaal (PCS)
15%
Decodeermogelijkheid
GS1 DataBar, Code 39, UPC, EAN/JAN
TTL-decodering
Gecodeerd
Connectiviteit
Met bekabeling
OK-melding
Pieper, LED-indicator
Functies
Val-beveiliging, 16 kV ESD-bescherming (luchtlozing), Datalogic Three Green Lights (3GL), Green Spot technologie, Datalogic Motionix-technologie, desinfecterende behuizing

Uitbreiding / Aansluiting

Interfaces
1 x USB

Diversen

Kabels meegeleverd
1 x USB-kabel - extern - 2 m
Conformiteitsnormen
IP52, China RoHS, EU RoHS, IEC 62471

Stroom

Voltage
DC 5 V
Elektrische stroom vereist
350 mA (in bedrijf), 60 mA (stationair), 60 mA (bedrijfsgereed)

Afmetingen & gewicht

Breedte
6.8 cm
Diepte
10.9 cm
Hoogte
16.6 cm
Gewicht
163 g

Garantie van de fabrikant

Service & Support
Beperkte garantie - 5 jaar

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
50 °C
Luchtvochtigheidsgraad bij gebruik
0 - 95% (niet condenserend)
Valspecificatie
1,8 m tot beton

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
