Productnummer: 3462061

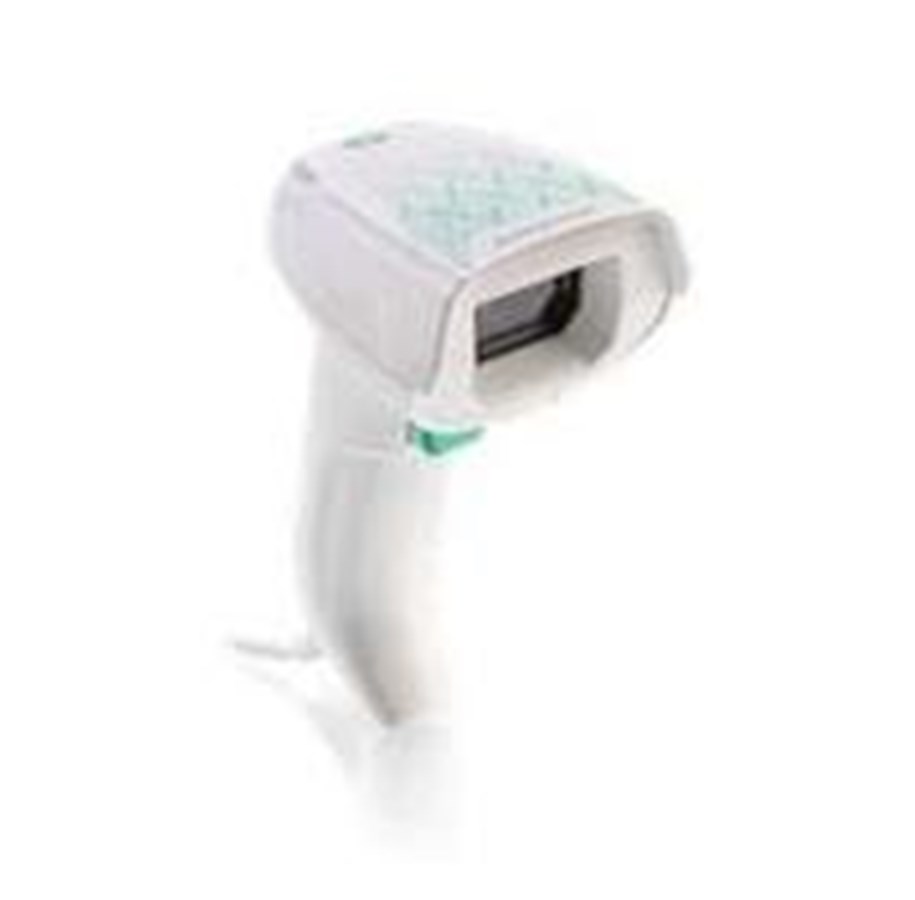

Datalogic Gryphon I GD4690 - barcode scanner

Streepjescodescanner, portable, 2D-imager, gecodeerd, USB, RS-232

320,82 € 265,14 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

The Datalogic Gryphon I GD4690 barcode reader provides versatility and efficiency for a variety of applications. With support for numerous barcode types including QR code, Data Matrix, and Australian Post, this device ensures comprehensive scanning capabilities to meet diverse operational needs. The portable form factor and wired connectivity through USB or RS-232 make it easy to integrate into existing systems while delivering reliable performance.Engineered for durability, the Gryphon I GD4690 features a 2D imager with robust construction that withstands drops from heights of up to 1.8 m to concrete. Additionally, its high density scanning capabilities ensure accurate read rates even in challenging conditions, supported by an IP52 rating for protection against dust and water. With a wide operating temperature range and humidity tolerance, this barcode reader is built to function effectively in various environments.

Producent
Productnummer
3462061
Model
GD4690-HCK1-HP
Naar de website van de producent
Productbeschrijving
Datalogic Gryphon I GD4690 - streepjescodescanner
Type
Streepjescodescanner - portable - USB, RS-232 - gecodeerd
Kleur
Wit
Min. streepjesbreedte
3 mil
Scanonderdeeltype
2D-imager
Connectiviteit
Met bekabeling
Batterij
1 x Lithiumion
Afmetingen (BxDxH)
6.5 cm x 18 cm x 7.9 cm
Gewicht
218 g

Algemeen

Type
Streepjescodescanner - portable
Kleur
Wit

Streepjescode

Interfacetype
USB, RS-232
Min. streepjesbreedte
3 mil
Scanonderdeeltype
2D-imager
Scanmodus
Éénfasig
Scheefheid (graden)
65
Pitch (graden)
65
Print Contrast Signaal (PCS)
15%
Decodeermogelijkheid
Australische Post, Aztec, Britse Post, China Han Xin Code, Chinese Post, Data Matrix, DotCode, EAN/JAN, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 Digital Link, IMB, Japanse Post, Kix (Nederlandse) Post, MacroPDF417, MaxiCode, Micro QR-code, MicroPDF417, PLANET, Postnet, QR-code, Royal Mail, UPC-A / E, OCR-A, OCR-B, MICR
TTL-decodering
Gecodeerd
Connectiviteit
Met bekabeling
OK-melding
Pieper, LED-indicator
Functies
Scannen met hoge dichtheid, 16 kV ESD-bescherming (luchtlozing)

Uitbreiding / Aansluiting

Interfaces
1 x USB
1 x RS-232

Diversen

Kabels meegeleverd
1 x USB-kabel
Conformiteitsnormen
IP52, China RoHS, EU RoHS

Stroom

Voeding
Oplaadstandaard streepjescodescanner
Batterij
1 x Lithiumion

Afmetingen & gewicht

Breedte
6.5 cm
Diepte
18 cm
Hoogte
7.9 cm
Gewicht
218 g

Garantie van de fabrikant

Service & Support
Beperkte garantie - 5 jaar

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
50 °C
Luchtvochtigheidsgraad bij gebruik
0 - 95% (niet condenserend)
Valspecificatie
1,8 m tot beton
