Productnummer: 3155153

Poynting · Antennen · 5G/LTE · Mast/Wand · A-XPOL- · Antennes · 5G/LTE · Mast/Muurbevestiging · A-XPOL

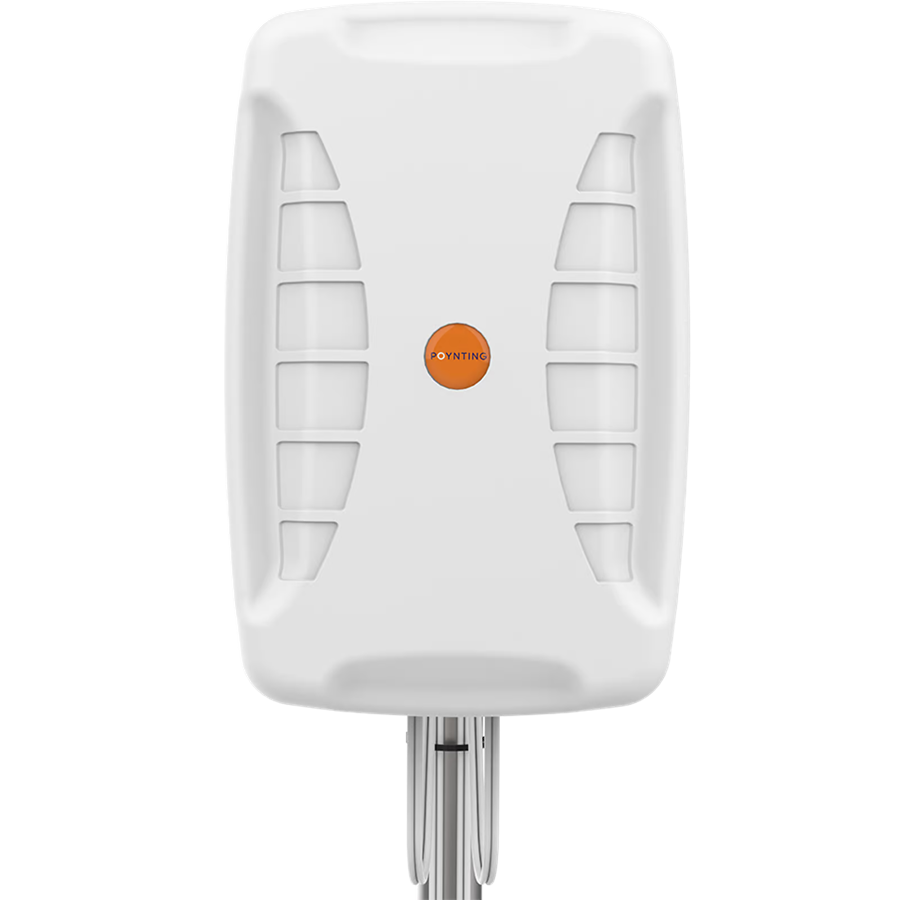

Poynting XPOL-24. Antenne versterkingsniveau (max): 11 dBi, Frequentieband: 0.617 - 0.96 & 1.71 - 4.2, Impedantie: 50 Ohm. Soort antenne: SMA antenna, Aansluiting antenne: SMA, Geslacht connector: Mannelijk. Type stroombron: DC. Certificaten van naleving: CE, RoHS, Certificering: CE, RoHS. Breedte: 290 mm, Diepte: 444 mm, Hoogte: 110 mm• SMA antenna SMA Wit• 11 dBi• 0.617 - 0.96 & 1.71 - 4.2• 50 Ohm• Horizontale en verticale polarisatie Mannelijk• Doorstaat windsnelheid: 160 km/h• Wand/paal• Type stroombron: DC

375,58 € 310,40 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 9 - 11 werkdagen levertijd

The XPOL-24 is engineered with cutting-edge metamaterial technology and an Artificial Magnetic Conductor (AMC) for superior bandwidth and gain. This ensures exceptional performance for both current and future 5G/LTE networks.

Wideband Frequency Coverage: 617–4200 MHz, supporting a variety of bands:
- 617–960 MHz
- 1710–2170 MHz
- 2300–2700 MHz
- 3400–4200 MHz

4x4 MIMO Capability: Boosts connectivity and performance, ideal for Carrier Aggregation.
Peak Gain: Up to 11dBi, delivering reliable signal quality even in challenging environments.

The XPOL-24 is the go-to solution for demanding 5G/LTE deployments, ensuring robust and future-proof connectivity.

Producent
Productnummer
3155153
Model
A-XPOL-24-V1-01
EAN
6009710924693
Naar de website van de producent
Antenne versterkingsniveau (max)
11 dBi
Frequentieband
0.617 - 0.96 & 1.71 - 4.2
Impedantie
50 Ohm
Soort antenne
SMA antenna
Aansluiting antenne
SMA
Geslacht connector
Mannelijk
Polarisatie
Horizontale en verticale polarisatie
Voltage Standing Wave Ratio (VSWR)
2:1
Kleur van het product
Wit
Internationale veiligheidscode (IP)
IP65
Doorstaat windsnelheid
160 km/h
Power handling
10 W
Snoerlengte
5 m
Soort kabel
Twin HDF-195
Montage
Wand/paal
Bedoeld voor
Buiten
Type stroombron
DC
Certificaten van naleving
CE, RoHS
Certificering
CE, RoHS
Bedrijfstemperatuur (T-T)
-40 - 80 °C
Temperatuur bij opslag
-40 - 80 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Breedte
290 mm
Diepte
444 mm
Hoogte
110 mm
Gewicht
3,17 kg
Breedte verpakking
510 mm
Diepte verpakking
420 mm
Hoogte verpakking
120 mm
Gewicht verpakking
4,38 kg
Type verpakking
Doos
Aantal per verpakking
1 stuk(s)
Montage gereedschap
Ja
Gebruikershandleiding
Ja

Prestatie

Antenne versterkingsniveau (max)
11 dBi
Frequentieband
0.617 - 0.96 & 1.71 - 4.2
Impedantie
50 Ohm

Kenmerken

Soort antenne
SMA antenna
Aansluiting antenne
SMA
Geslacht connector
Mannelijk
Polarisatie
Horizontale en verticale polarisatie
Voltage Standing Wave Ratio (VSWR)
2:1
Kleur van het product
Wit
Internationale veiligheidscode (IP)
IP65
Doorstaat windsnelheid
160 km/h
Power handling
10 W
Snoerlengte
5 m
Soort kabel
Twin HDF-195
Montage
Wand/paal
Bedoeld voor
Buiten

Energie

Type stroombron
DC

Certificaten

Certificaten van naleving
CE, RoHS
Certificering
CE, RoHS

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 80 °C
Temperatuur bij opslag
-40 - 80 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
290 mm
Diepte
444 mm
Hoogte
110 mm
Gewicht
3,17 kg

Verpakking

Breedte verpakking
510 mm
Diepte verpakking
420 mm
Hoogte verpakking
120 mm
Gewicht verpakking
4,38 kg
Type verpakking
Doos

Inhoud van de verpakking

Aantal per verpakking
1 stuk(s)
Montage gereedschap
Ja
Gebruikershandleiding
Ja
