Productnummer: 3254259
Panorama Antennas Panorama Sharkee
Antenne, navigatie, mobiel, Wi-Fi, 5 dBi, omnidirectioneel
228,06 €
188,48 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

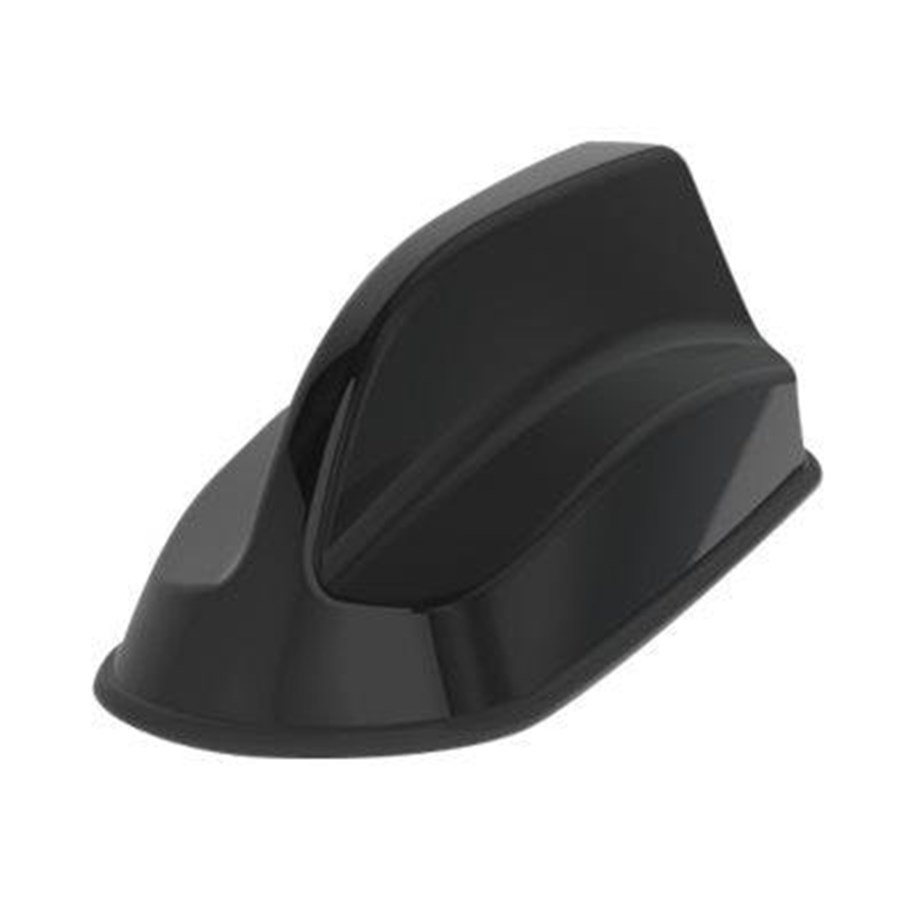

The GPSD 'MiMo Sharkee ' has a compact OEM style shark fin housing that contains 2x2 MiMo antenna function for 4G/3G/2G and an active antenna for GPS/GLONASS/Galileo/Beidou with 26dB gain LNA. In addition, there is an integral stud mount for an external antenna whip that can support a range of VHF, UHF or 700/800MHz antennas.The GPSD shark fin style design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient and robust antenna is essential. Requiring only a single hole mounting, the GPSD reduces vehicle damage, installation time & cost and visual impact whilst protecting a vehicle's resale value.
Producent
Productnummer
3254259
Model
GPSD-7-27-24-58
EAN
5019738210822
Naar de website van de producent
Productbeschrijving
Panorama Sharkee - antenne
Type apparaat
Antenne
Bestemd voor
Navigatie, mobiel, Wi-Fi
Afmetingen (BxDxH)
6.1 cm 5 cm
Gewicht
260 g
Kleur
Zwart
Compatibiliteit
GPS, GLONASS, WLAN 2.4 GHz, 2G, 3G, 4G, BeiDou, GALILEO, WLAN 5.8 GHz
Frequentiebereik
1.71 - 2.17 GHz, 698 - 960 MHz, 2300 - 2500 MHz, 1562 - 1612 MHz, 2500 - 3800 MHz, 4900 - 6000 MHz
Versterking
5 dBi
Directiviteit
Omnidirectioneel
Voorzieningen
Verticaal gepolariseerd, rechtsdraaiende circulaire polarisatie (RHCP)
Algemeen
Producttype
Antenne
Bestemd voor
Navigatie, mobiel, Wi-Fi
Breedte
6.1 cm
Hoogte
5 cm
Lengte / Maximumlengte
17.2 cm
Gewicht
260 g
Kleur
Zwart
Productmateriaal
Aluminumlegering
Antenne
Compatibiliteit
GPS, GLONASS, WLAN 2.4 GHz, 2G, 3G, 4G, BeiDou, GALILEO, WLAN 5.8 GHz
Frequentiebereik
1.71 - 2.17 GHz, 698 - 960 MHz, 2300 - 2500 MHz, 1562 - 1612 MHz, 2500 - 3800 MHz, 4900 - 6000 MHz
Impedantie
50 Ohm
Versterking
5 dBi
Directiviteit
Omnidirectioneel
Voorzieningen
Verticaal gepolariseerd, rechtsdraaiende circulaire polarisatie (RHCP)
Meegeleverde Connector
Type
4 x antenne - SMA
1 x GPS-antenne - FME
1 x antenne - FME
1 x GPS-antenne - FME
1 x antenne - FME
Diversen
Kabels meegeleverd
6 x antennekabel - 30 cm
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
