Panorama Antennas Panorama MAKO LPMM4B-6-60 - aerial

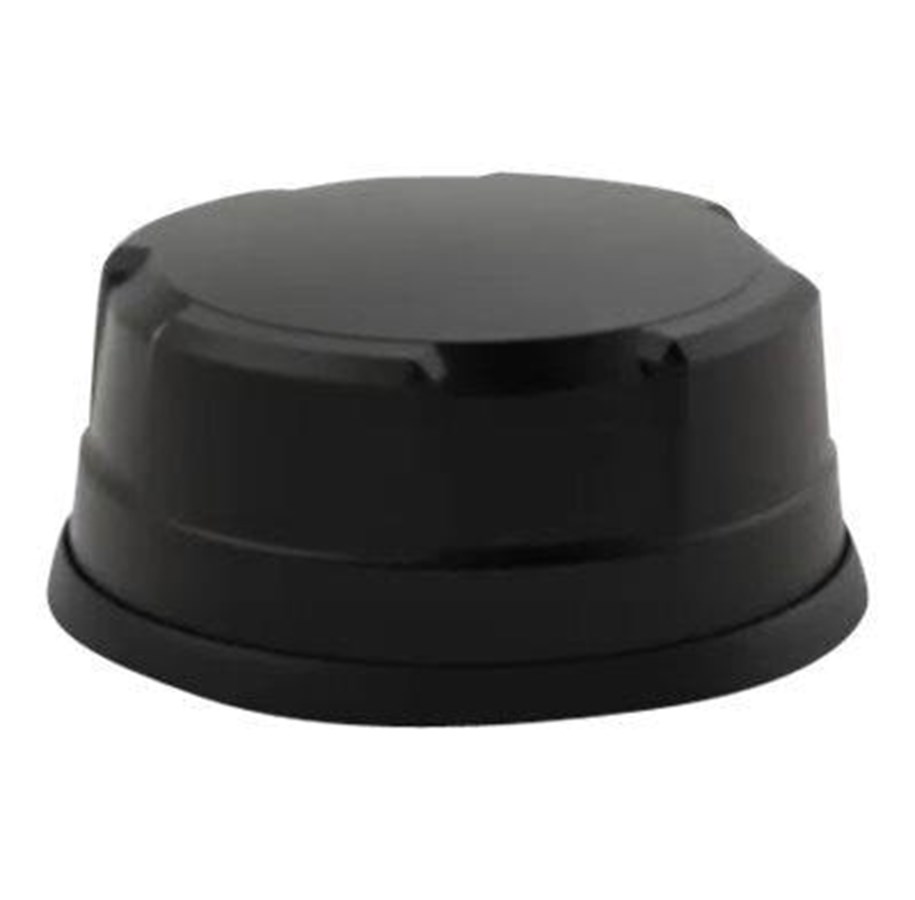

The MAKO 5G dome is a range of high-performance 4x4 MiMo antennas.The MAKO 5G dome consists of up to 11 elements; four isolated high-performance antenna elements covering 617-960/1710-6000 MHz offer MiMo/Diversity at cellular/LTE frequencies, up to 6 dual band elements covering 2.4 and 7.2 GHz support MiMo/Diversity operation for Wi-Fi and high-performance GPS/GNSS antenna with an integrated 26 dB gain LNA and high-quality filtering offers unparalleled positioning accuracy.Although the LTE elements are designed for 4x4 MiMo operation, it is possible to utilize these as 2 pairs of 2x2 MiMo for a router that has 2 SIMS (radio) in a failover configuration (i.e. only one SIM active at any time). As this configuration is using only 2 out of the 4 antennas for a single SIM, the network coverage should be checked to ensure that this use is suitable.
