Productnummer: 3498142

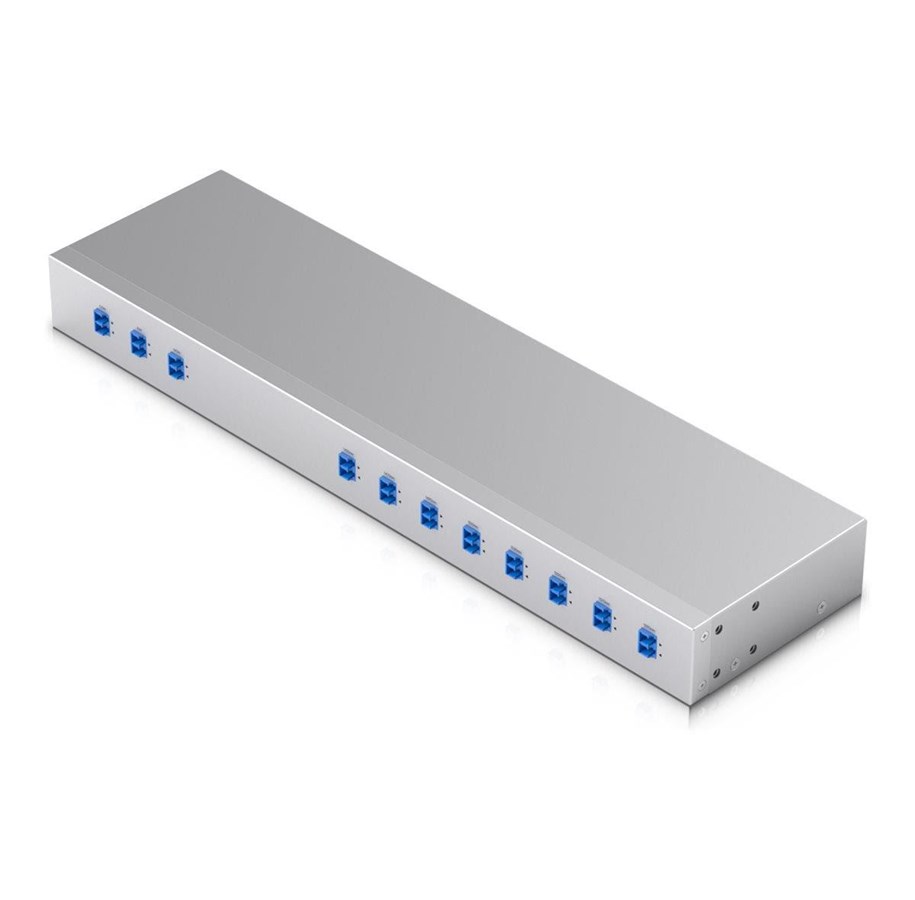

Ubiquiti UniFi CWDM Mux Demux 8
Multiplexor, 11 poorten, monteerbaar op rack, voor UniFi Switch USW-Aggregation
344,68 €
284,86 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 3 - 4 werkdagen levertijd
The Ubiquiti UniFi CWDM Mux Demux 8 offers a solution for efficient data transmission with its multiplexing capabilities. Equipped with a resilient steel housing, this device ensures durability and long-lasting performance in various environmental conditions. The system supports a wide operating temperature range from -30°C to 75°C, making it suitable for diverse deployment scenarios. With 8 channels operating at multiple optical wavelengths, this rack-mountable multiplexer meets demanding network needs.The CWDM Mux Demux 8 has a minimum return loss of 50 dB and a maximum polarization dependent loss of 0.1 dB, ensuring optimized performance and minimal signal degradation. The connectivity options include 11 ports, enabling seamless integration into existing networks. With its wired technology, this device delivers reliable connectivity that enhances overall network reliability and efficiency.
Producent
Productnummer
3498142
Model
UACC-CWDM-8
EAN
810084694824
Naar de website van de producent
Neem contact op met de fabrikant
Productbeschrijving
Ubiquiti UniFi CWDM Mux Demux 8 - multiplexor
Type apparaat
Multiplexor
Model
Monteerbaar op rack
Aantal poorten
11
Optische golflengte
1450 nm / 1470 nm / 1490 nm / 1510 nm / 1530 nm / 1550 nm / 1570 nm / 1590 nm
Voorzieningen
Stalen behuizing, 8 kanalen
Afmetingen (BxDxH)
44.2 cm x 12 cm x 4.37 cm
Gewicht
1.4 kg
Ontworpen voor
UniFi Switch USW-Aggregation
Algemeen
Type apparaat
Multiplexor
Model
Monteerbaar op rack
Netwerk
Aantal poorten
11
Connectiviteit
Met bekabeling
Optische golflengte
1450 nm / 1470 nm / 1490 nm / 1510 nm / 1530 nm / 1550 nm / 1570 nm / 1590 nm
Voorzieningen
Stalen behuizing, 8 kanalen
Communicatie
Capaciteit
Minimale terugverlies - 50 dB
Maximale polarizatie-afhankelijk verlies - 0.1 dB
Maximale polarizatie-afhankelijk verlies - 0.1 dB
Uitbreiding / Aansluiting
Interfaces
1 x COM - LC/UPC
1 x MON - LC/UPC
8 x GPON - LC/UPC
1 x EXP - LC/UPC
1 x MON - LC/UPC
8 x GPON - LC/UPC
1 x EXP - LC/UPC
Afmetingen & gewicht
Breedte
44.2 cm
Diepte
12 cm
Hoogte
4.37 cm
Gewicht
1.4 kg
Omgevingsparameters
Min. gebruikstemperatuur
-30 °C
Max. gebruikstemperatuur
75 °C
Informatie over Compatibiliteit
Ontworpen voor
Ubiquiti UniFi Switch USW-Aggregation
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
