Productnummer: 3206868

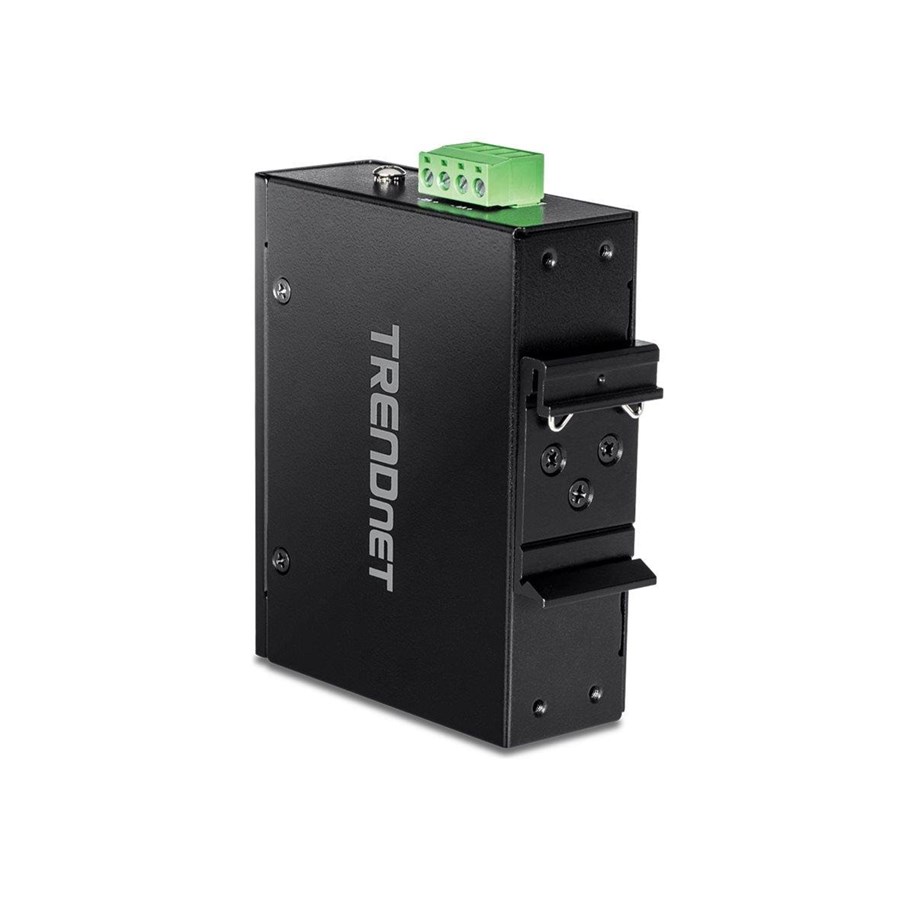

TRENDnet TI-IG290 - PoE injector - 2.5G industrial - 95 Watt - TAA Compliant

Stroomtoevoer (monteerbaar op DIN-rails), 2.5G, industrial, 95 Watt, uitgangen: 2, TAA Compliant

156,07 € 128,98 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd

TRENDnet's 95 W 2-Port Industrial 2.5G PoE++ Injector, model TI-IG290, allows users to add PoE++ power to a non-PoE 2.5G switch. Connect the 2-port industrial 2.5G PoE++ injector to a non-PoE 2.5G switch, and then run Ethernet cables up to 100 meters (328 feet) to network two PoE/PoE++ devices. This multi-port industrial 2.5G PoE++ injector supplies up to 95 W of power to two PoE devices with a total PoE budget of 180 W. The fanless design conveniently eliminates operating noise and lowers unnecessary energy consumption. The dual port industrial 2.5G PoE++ injector is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 70°C (-40° - 167°F) for harsh industrial environments.

Producent
Productnummer
3206868
Model
TI-IG290
EAN
0710931162301
Naar de website van de producent
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000,2500 Mbit/s
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Duplex systeem
Volledig, Half
Kleur van het product
Zwart
Ophangsysteem voor aan de muur
Ja
Mean time between failures (MTBF)
716685 uur
Auto-negotiation
Ja
Aantal Ethernet LAN (RJ-45)-poorten
4
RJ-45 invoer ports
2
RJ-45 uitgang ports
2
Uitgangsvermogen
96 W
Ingangsspanning
52 – 56
Vermogensverbruik (max)
95 W
Totaal Power over Ethernet (PoE)-budget
180 W
Certificaten van naleving
CE
Certificering
FCC IEC EN60950-1 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6
Bedrijfstemperatuur (T-T)
-40 - 75 °C
Breedte
81 mm
Diepte
30 mm
Hoogte
103 mm
Gewicht
170 g
Aantal producten inbegrepen
1 stuk(s)
Wand montagekit
Ja
Snelle installatiehandleiding
Ja
Verpakkingsinhoud
Wall
Naleving van duurzaamheid
Ja

Netwerk

Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000,2500 Mbit/s
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Duplex systeem
Volledig, Half

Kenmerken

Kleur van het product
Zwart
Ophangsysteem voor aan de muur
Ja
Mean time between failures (MTBF)
716685 uur
Auto-negotiation
Ja

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten
4
RJ-45 invoer ports
2
RJ-45 uitgang ports
2

Energie

Uitgangsvermogen
96 W
Ingangsspanning
52 – 56
Vermogensverbruik (max)
95 W
Totaal Power over Ethernet (PoE)-budget
180 W

Certificaten

Certificaten van naleving
CE
Certificering
FCC IEC EN60950-1 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C

Gewicht en omvang

Breedte
81 mm
Diepte
30 mm
Hoogte
103 mm
Gewicht
170 g

Inhoud van de verpakking

Aantal producten inbegrepen
1 stuk(s)
Wand montagekit
Ja
Snelle installatiehandleiding
Ja
Verpakkingsinhoud
Wall

Duurzaamheid

Naleving van duurzaamheid
Ja

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
