Accessoires - Poynting Antennas WLAN-61 - antenna - A-WLAN-0061-V1
Productnummer: 3278795

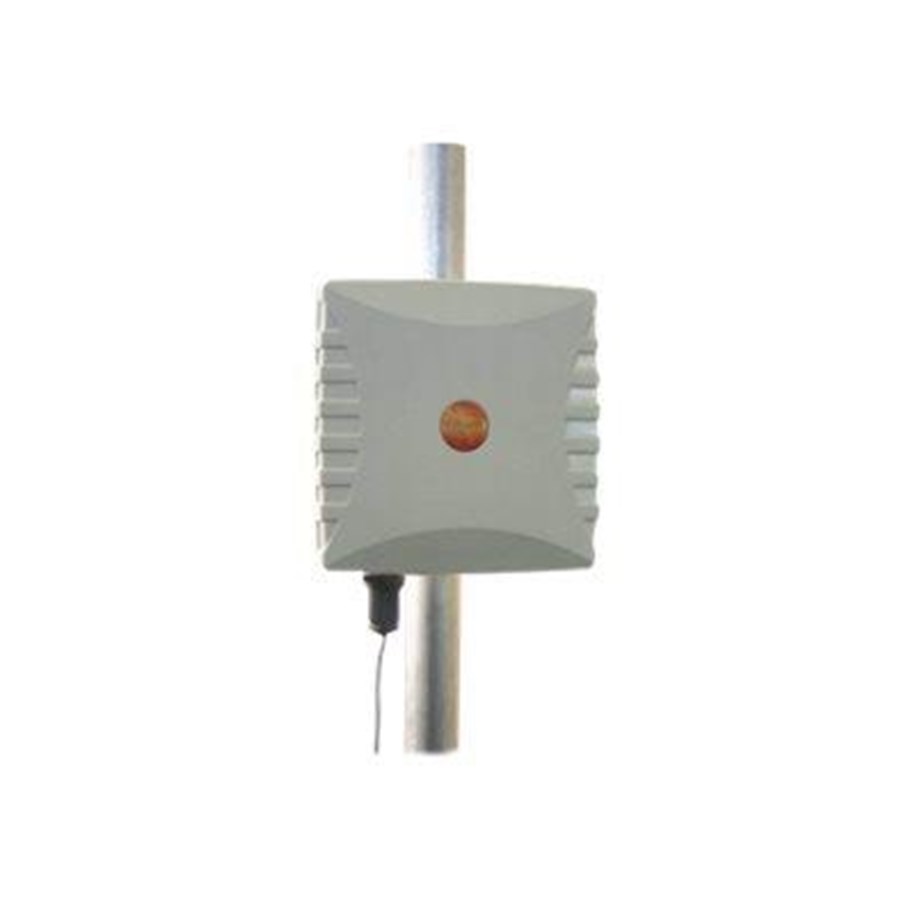

Poynting Antennas WLAN-61 - antenna

Antenne, mobiel, Wi-Fi, 9 dBi (voor 2,4, 2,5 GHz), 11 dBi (voor 5,0, 6,0 GHz), directioneel, buiten de deur, binnenshuis, RAL 7047, pantone koelgrijs 1C

162,49 € 134,29 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 7 - 8 werkdagen levertijd

The Wi-Fi Dual-Band MIMO antenna, developed by Poynting Antennas, can connect to any Wi-Fi access point whether it is older Wi-Fi technology or dual band Wi-Fi technology. Multiple Dual Band antennas can resolve channel saturation and provide the ultimate in Wi-Fi performance and flexibility. This 4x4 MiMo antenna has 4 different antenna orientations in one enclosure. This means the antenna can be used in a 2 x 2, 3 x 3 and if necessary a 4 x 4 antenna configuration.The Wide beamwidth ensures good coverage in offices, halls and factories etc. The antenna operates in two frequency bands 2.4 GHz and 5 GHz, offering excellent utilization of the radio spectrum. This Antenna has 9 dBi gain at 2.4 GHz band and 11 dBi gain at the 5 GHz band, which offers the best performance with reliable connections. The housing is made of ABS which is high impact resistant plastic and is also resistant to acids and other chemicals that may occur in industrial plants.The antenna can be opened on the side where the 4x SMA female connectors are placed. The cable can be fed through the bypass gland, which eliminates the joint to the antenna extension cables. This eliminates connector losses and the need for taping and waterproofing the connectors for an outdoor installation. This antenna is designed for installations where 4 x 4 (four independent streams), multiplexing time-space technologies is needed. It can be used indoors or outdoors and is ideal for use in warehouses, production facilities, building sites or any other environment that requires Wi-Fi connectivity, such as computers, mobile phones, tablets, and any other IOT devices.

Producent
Productnummer
3278795
Model
A-WLAN-0061-V1
EAN
0707273469670
Naar de website van de producent
Productbeschrijving
Poynting Antennas WLAN-61 - antenne
Producttype
Antenne
Afmetingen (BxDxH)
24 cm x 24 cm x 6 cm
Gewicht
760.6 g
Productmateriaal
ABS-plastic
Kleur
RAL 7047, pantone koelgrijs 1C
Bestemd voor
Mobiel, Wi-Fi
Plaatsing/montage antenne
Buiten de deur, binnenshuis
Compatibiliteit
LTE, Wi-Fi
Versterking
9 dBi (voor 2,4 - 2,5 GHz), 11 dBi (voor 5,0 - 6,0 GHz)
Directiviteit
Directioneel

Algemeen

Producttype
Antenne
Productmateriaal
ABS-plastic
Breedte
24 cm
Diepte
24 cm
Hoogte
6 cm
Gewicht
760.6 g
Kleur bijvoegsel
RAL 7047, pantone koelgrijs 1C

Antenne

Bestemd voor
Mobiel, Wi-Fi
Plaatsing/montage antenne
Buiten de deur, binnenshuis
Compatibiliteit
LTE, Wi-Fi
Versterking
9 dBi (voor 2,4 - 2,5 GHz), 11 dBi (voor 5,0 - 6,0 GHz)
Directiviteit
Directioneel
Voltage staande golfratio (VSWR)
2:1
Impedantie
50 Ohm

Bekabeling en bedrading

Meegeleverde Connector
SMA female

Diversen

Montagekit
Inclusief
Voorzieningen
Vlamvertragend, weerbestendig, bestand tegen vandalisme, dubbel polariserend, MIMO-technologie

Afmetingen & gewicht (transport)

Verzendbreedte
26 cm
Verzenddiepte
28 cm
Verzendhoogte
8 cm
Verzendgewicht
1.335 kg

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
