Productnummer: 3167150

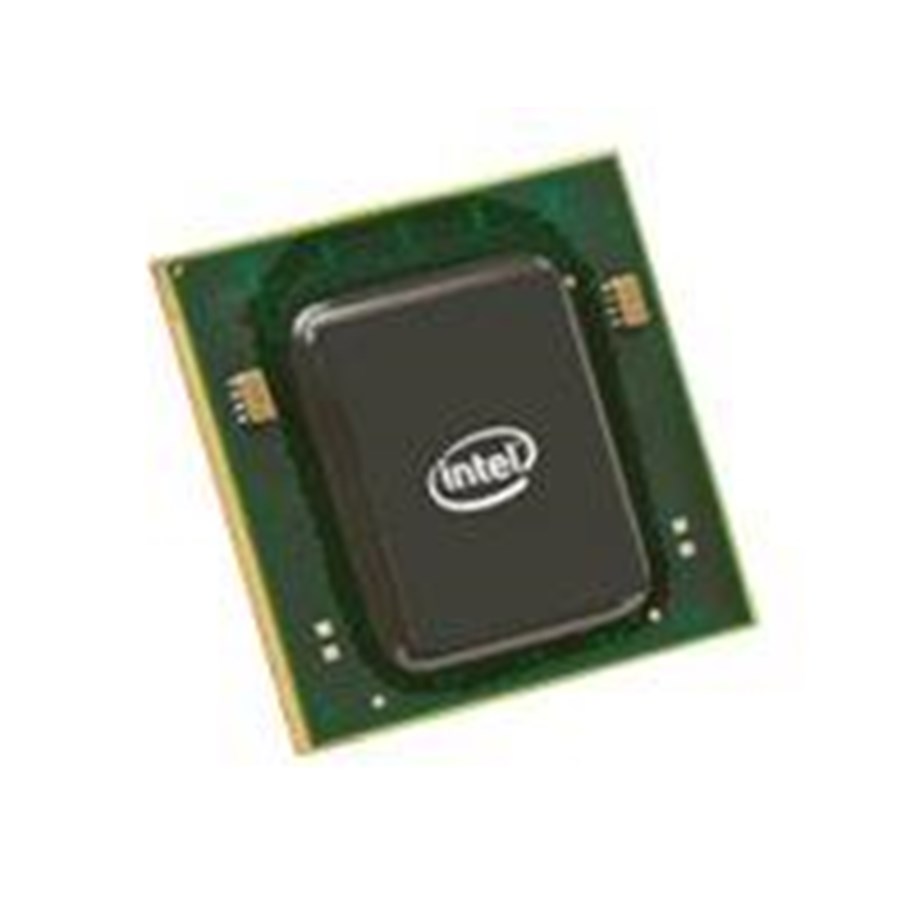

Intel X550-AT2 - dual port 10GbE (256-pin FCBGA) controller
Dubbele poort 10 Gbe (256-pins FCBGA) controller
118,47 €
97,91 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 13 - 14 werkdagen levertijd
Producent
Productnummer
3167150
Model
ELX550AT2
EAN
7330381158742
Naar de website van de producent
Neem contact op met de fabrikant
Lithografie
28 nm
iWARP/RDMA
Nee
Ingebouwde grafische adapter
Nee
PCI-SIG* SR-IOV Capable
Ja
Intelligent Offloads
Ja
Pakket afmeting
17 x 17 mm
Fiber Channel over Ethernet
Ja
Jumbo Frames ondersteuning
Ja
Thermal Design Power (TDP)
11 W
Compatibele besturingssystemen
FreeBSD 10.2, Linux RHEL 6.7, Linux RHEL 7.1, Linux SLES 11 SP4, Linux SLES 11 SP4-IA64, Linux SLES 12, Linux Stable Kernel version 2.6/3.x, Linux Stable Kernel version 4.x, UEFI 2.1, UEFI 2.3, UEFI 2.4, VMware ESXi 5.5/6.0, Windows 7 SP1, Windows 8, Windows 8.1, Windows 10, Windows Server 2008 R2, Windows Server 2008 R2 Core, Windows Server 2008 R2 Hyper-V, Windows Server 2012, Windows Server 2012 Core, Windows Server 2012 Hyper-V, Windows Server 2012 R2, Windows Server 2012 R2 Core, Windows Server 2012 R2 Hyper-V, WinPE 3.0 (2008 R2 PE), WinPE 4.0 (2012 PE), WinPE 5.0 (2012 R2 PE)
Lanceringsdatum
Q4'15
Opslag via ethernet
iSCSI, FCoE, NFS
Productcodenaam
Sageville
Status
Launched
Productserie
500 Series Controllers (up to 10GbE)
Intel® Flexible Port Partitioning
Ja
Intel® Ethernet Power Management
Ja
Intel® Data Direct I/O Technology
Ja
Intel® Virtual Machine Device Queues (VMDq)
Ja
Supported Under vPro
Nee
Intel® Virtualization Technology for Connectivity (VT-c)
Ja
Hostinterface
PCI Express
Aantal Ethernet LAN (RJ-45)-poorten
2
PCI Express slots versie
3.0
Ethernet LAN, data-overdrachtsnelheden
1000,2500,5000,10000 Mbit/s
Koperen ethernetbekabelingstechnologie
10GBASE-T, 100BASE-T, 1000BASE-T
Network controller sideband interface (NC-SI)
Ja
Minimum operationele temperatuur
0 °C
Maximale temperatuur (in bedrijf)
55 °C
Bedrijfstemperatuur (T-T)
0 - 55 °C
Code geharmoniseerd systeem (HS)
8542310001
Export Control Classification Number (ECCN)
5A992CN3
Commodity Classification Automated Tracking System (CCATS)
G054018
Kenmerken
Lithografie
28 nm
iWARP/RDMA
Nee
Ingebouwde grafische adapter
Nee
PCI-SIG* SR-IOV Capable
Ja
Intelligent Offloads
Ja
Pakket afmeting
17 x 17 mm
Fiber Channel over Ethernet
Ja
Jumbo Frames ondersteuning
Ja
Thermal Design Power (TDP)
11 W
Compatibele besturingssystemen
FreeBSD 10.2, Linux RHEL 6.7, Linux RHEL 7.1, Linux SLES 11 SP4, Linux SLES 11 SP4-IA64, Linux SLES 12, Linux Stable Kernel version 2.6/3.x, Linux Stable Kernel version 4.x, UEFI 2.1, UEFI 2.3, UEFI 2.4, VMware ESXi 5.5/6.0, Windows 7 SP1, Windows 8, Windows 8.1, Windows 10, Windows Server 2008 R2, Windows Server 2008 R2 Core, Windows Server 2008 R2 Hyper-V, Windows Server 2012, Windows Server 2012 Core, Windows Server 2012 Hyper-V, Windows Server 2012 R2, Windows Server 2012 R2 Core, Windows Server 2012 R2 Hyper-V, WinPE 3.0 (2008 R2 PE), WinPE 4.0 (2012 PE), WinPE 5.0 (2012 R2 PE)
Lanceringsdatum
Q4'15
Opslag via ethernet
iSCSI, FCoE, NFS
Productcodenaam
Sageville
Status
Launched
Productserie
500 Series Controllers (up to 10GbE)
Processor speciale functies
Intel® Flexible Port Partitioning
Ja
Intel® Ethernet Power Management
Ja
Intel® Data Direct I/O Technology
Ja
Intel® Virtual Machine Device Queues (VMDq)
Ja
Supported Under vPro
Nee
Intel® Virtualization Technology for Connectivity (VT-c)
Ja
Poorten & interfaces
Hostinterface
PCI Express
Aantal Ethernet LAN (RJ-45)-poorten
2
PCI Express slots versie
3.0
Netwerk
Ethernet LAN, data-overdrachtsnelheden
1000,2500,5000,10000 Mbit/s
Koperen ethernetbekabelingstechnologie
10GBASE-T, 100BASE-T, 1000BASE-T
Network controller sideband interface (NC-SI)
Ja
Eisen aan de omgeving
Minimum operationele temperatuur
0 °C
Maximale temperatuur (in bedrijf)
55 °C
Bedrijfstemperatuur (T-T)
0 - 55 °C
Logistieke gegevens
Code geharmoniseerd systeem (HS)
8542310001
Export Control Classification Number (ECCN)
5A992CN3
Commodity Classification Automated Tracking System (CCATS)
G054018
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
