Productnummer: 3336447

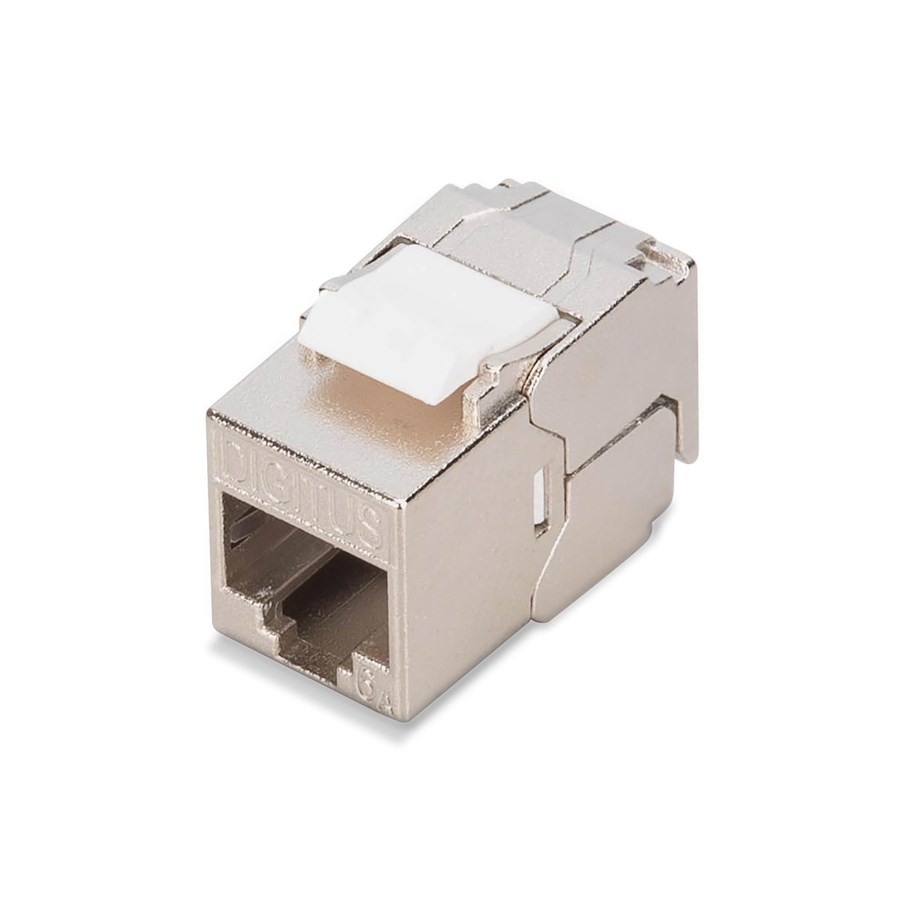

DIGITUS DN-93615-S - CAT6A Keystone (Single)

Digitus DN-93615-S keystonemodule

9,03 € 7,46 € excl. BTW
Goedkoopste privé verzending 4,99 €
Extern magazijn, 5 - 6 werkdagen levertijd

The DIGITUS DN-93615-S modular insert is designed for efficient connectivity in various networking environments. Its compact and tool-free design allows for easy installation, making it suitable for both professional and home use. Supporting PoE and PoE+, this keystone module ensures seamless power and data transmission over a single cable, adhering to industry standards, including IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt. Constructed with nickel plated zinc die-cast material, it features durable gold/nickel contacts and phosphor bronze contacts, which enhance connectivity and reliability.With a temperature range of -20°C to 70°C, this product is built to perform in various environmental conditions. It utilizes the T568A/B wiring scheme and is compliant with several standards such as EN 50173-1 and ISO/IEC 11801 Ed. 3. The RJ-45 connector type ensures compatibility with most networking devices, while the included dust cover offers protection when not in use. Experience a reliable and efficient solution for your networking needs with the DIGITUS modular insert.

Producent
Productnummer
3336447
Model
DN-93615-S
EAN
4016032497462
Naar de website van de producent
Productbeschrijving
DIGITUS modulair insteeksel - compact, tool-free
Producttype
Modulair insteeksel - CAT 6a - RJ-45 - compact, tool-free
Gewicht
22 g
Productmateriaal
Vernikkeld gegoten zink
Hoev. poorten
1 poort
Bedradingsschema
T568A/B
Conformiteitsnormen
GHMT, 4PPoE, EIA/TIA 568A, EIA/TIA 568B, EN 50173-1, ISO/IEC 11801 Ed. 3, IEC 60603-7-51, ANSI/TIA-568-C.2 / IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt

Algemeen

Producttype
Modulair insteeksel - CAT 6a - compact, tool-free
Productmateriaal
Vernikkeld gegoten zink
Gewicht
22 g

Bekabeling en bedrading

Hoev. poorten
1 poort
Type afsluiting
LSA (Krone)
Technologie
Afgeschermd
Bedradingsschema
T568A/B
Functies
Keystone type, toolless, PoE-ondersteuning, ondersteunt PoE+, fosforbrons contacten, gouden/nikkel contactpunten
Compatibele standaards
IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt
Meegeleverde Connector
1 x RJ-45 female

Diversen

Voorzieningen
Stofkap
Conformiteitsnormen
GHMT, 4PPoE, EIA/TIA 568A, EIA/TIA 568B, EN 50173-1, ISO/IEC 11801 Ed. 3, IEC 60603-7-51, ANSI/TIA-568-C.2

Omgevingsparameters

Min. gebruikstemperatuur
-20 °C
Max. gebruikstemperatuur
70 °C
