Productnummer: 2756284

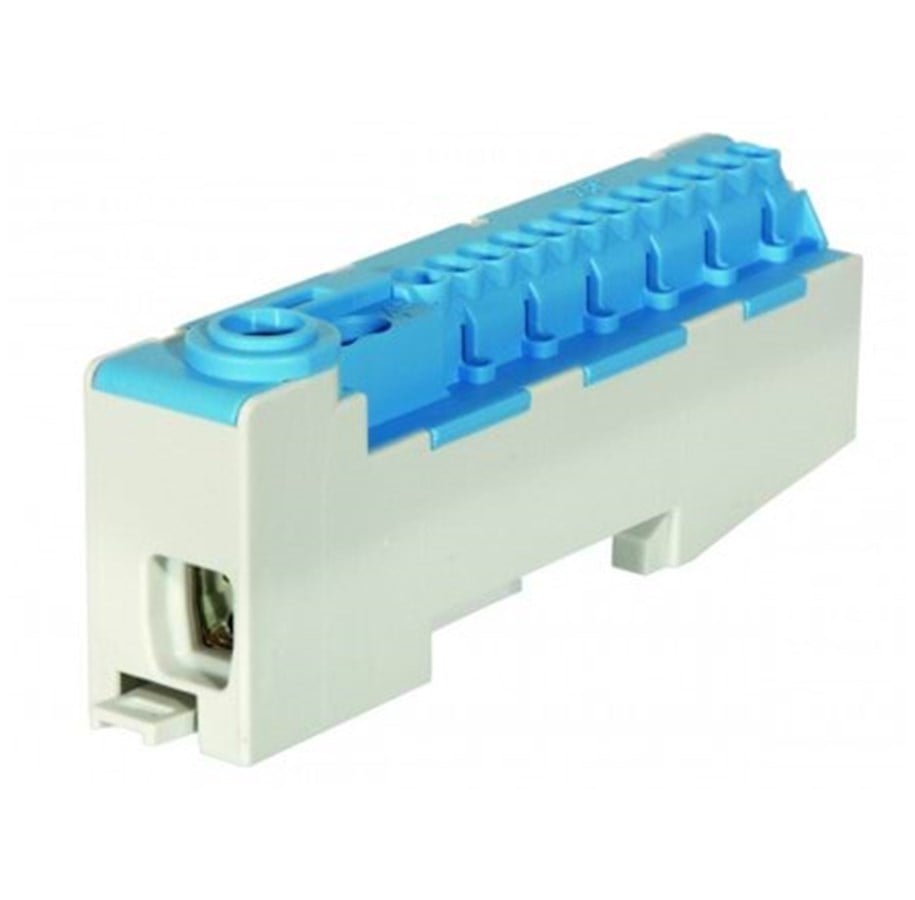

POLLMANN Blue plug-in terminal for dinrail
Terminal acc. to EN 60998/VDE 0613 with 15 connections. 12 plug-in connections max. 2,5mm2 ridid, 1,5mm2 flex with ferrule.2 plug-in connections max. 4mm2 rigid, 2,5mm2 flex with ferrule.1 screw connection up to 25mm2 rigid 16mm2 flex. 3 NmTo be clipped onto the Din-railheigth and width acc.to DIN 43880 with depth< 30mm to be mounted behind the cover.Protected type acc.to VBG4 / BGV A2Max curret 80A
11,74 €
9,70 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 3 - 4 werkdagen levertijd
Blue Installation Clamp Your Assembly Product Description: Terminal according to EN 60998 / VDE 0613 with 15 connections.12 plug-in connections max. 2.5mm2 solid, 1.5mm2 flexible with sleeve.2 plug-in connections max. 4mm2 solid, 2.5mm2 flexible with sleeve.1 screw connection up to 25mm2 solid,16mm2 flexible with a torque of3 Nm.To be clicked onto DIN rail height and width according to DIN43880with a depth <30 mm for mounting behind the cover.Protected type according to VBG4 / BGV A280A maximum current rating
