Productnummer: 3442136

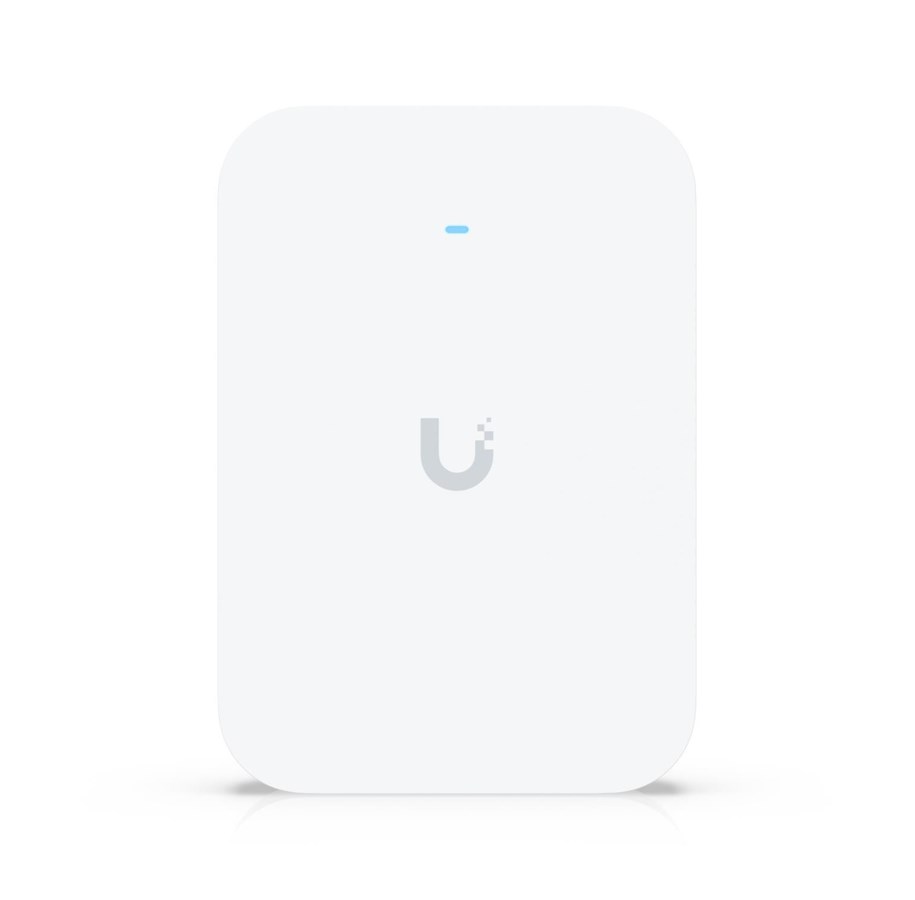

Ubiquiti UniFi Access Point U7 Pro XG Wall
Draadloze-toegangspunt, 2.5GbE, 10GbE, Wi-Fi 7, Wi-Fi 7, 2.4 GHz, 5 GHz, 6 GHz, wandmontage
308,19 €
254,70 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 3 - 4 werkdagen levertijd (verwacht in eigen magazijn 19-8-2026)
The Ubiquiti UniFi U7 Pro XG Wall is a wireless access point designed for seamless connectivity in various environments. Supporting multiple protocols including IEEE 802.11ax (Wi-Fi 6) and IEEE 802.11be (Wi-Fi 7), this device ensures robust data transfer, achieving maximum data rates of up to 5.8 Gbps on the 2.4 GHz band and 4.3 Gbps on the 5 GHz band. The wall-mountable form factor and internal antenna make it an ideal choice for efficient space management while delivering coverage for areas up to 140 sq.m. Highly adaptable, the U7 Pro XG features band steering and 2x2 MU-MIMO technology to optimize user connections and improve network performance. With a variety of compliant standards including IC, FCC, and NDAA, this access point is built for reliability in demanding networking environments. The integration of Power over Ethernet (PoE+) simplifies installation and reduces cable clutter.
Producent
Productnummer
3442136
Model
U7-Pro-XG-Wall
EAN
810177165118
Naar de website van de producent
Neem contact op met de fabrikant
Productbeschrijving
Ubiquiti UniFi U7 Pro XG Wall - draadloze-toegangspunt - Wi-Fi 7
Type apparaat
Draadloze-toegangspunt
Formfactor
Wandmontage
Protocol voor gegevenskoppeling
Gigabit Ethernet, 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Frequentieband
2.4 GHz, 5 GHz, 6 GHz
Prestaties
Maximale gegevenssnelheid (2,4 GHz): 688 Mbps
Maximale gegevenssnelheid (5 GHz): 4,3 Gbps
Maximale gegevenssnelheid (6 GHz): 5,8 Gbps
Maximale gegevenssnelheid (5 GHz): 4,3 Gbps
Maximale gegevenssnelheid (6 GHz): 5,8 Gbps
Capaciteit
Spatiële stromen: 6
Verbonden apparaten: 300+
BSSID's per radio: 8
Verbonden apparaten: 300+
BSSID's per radio: 8
Meegeleverde accessoires
Wandbevestigingsset
Ondersteund Power Over Ethernet (PoE)
PoE+
Stroom
DC 42.5 - 57 V
Afmetingen (BxDxH)
15.5 cm x 3.35 cm x 10.8 cm
Gewicht
505 g
Algemeen
Type apparaat
Draadloze-toegangspunt
Breedte
15.5 cm
Diepte
3.35 cm
Hoogte
10.8 cm
Gewicht
505 g
Netwerk
Model
Wandmontage
Connectiviteit
Draadloos
Protocol voor gegevenskoppeling
Gigabit Ethernet, 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Frequentieband
2.4 GHz, 5 GHz, 6 GHz
Max. afdekgebied
Tot 140 m²
Prestaties
Maximale gegevenssnelheid (2,4 GHz): 688 Mbps
Maximale gegevenssnelheid (5 GHz): 4,3 Gbps
Maximale gegevenssnelheid (6 GHz): 5,8 Gbps
Maximale gegevenssnelheid (5 GHz): 4,3 Gbps
Maximale gegevenssnelheid (6 GHz): 5,8 Gbps
Capaciteit
Spatiële stromen: 6
Verbonden apparaten: 300+
BSSID's per radio: 8
Verbonden apparaten: 300+
BSSID's per radio: 8
Statuslampjes
Status
Voorzieningen
Reset-knop, 2x2 MU-MIMO-technologie, bandbesturing, Captive Portal, Mesh-netwerken
Authentificatiemethode
Radio Service Set ID (SSID), RADIUS
Conformiteitsnormen
IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11n, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v
Antenne
Antenne
Intern
Uitbreiding / Aansluiting
Interfaces
1 x 10GBase-T (PoE+) - RJ-45
Diversen
Meegeleverde accessoires
Wandbevestigingsset
Conformiteitsnormen
NDAA, FCC, IC
Stroom
Ondersteund Power Over Ethernet (PoE)
PoE+
Voeding
Interne stroomvoorziening
Vereiste netspanning
DC 42.5 - 57 V
Omgevingsparameters
Min. gebruikstemperatuur
-30 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
5 - 95% (niet-condenserend)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
