Productnummer: 2470355

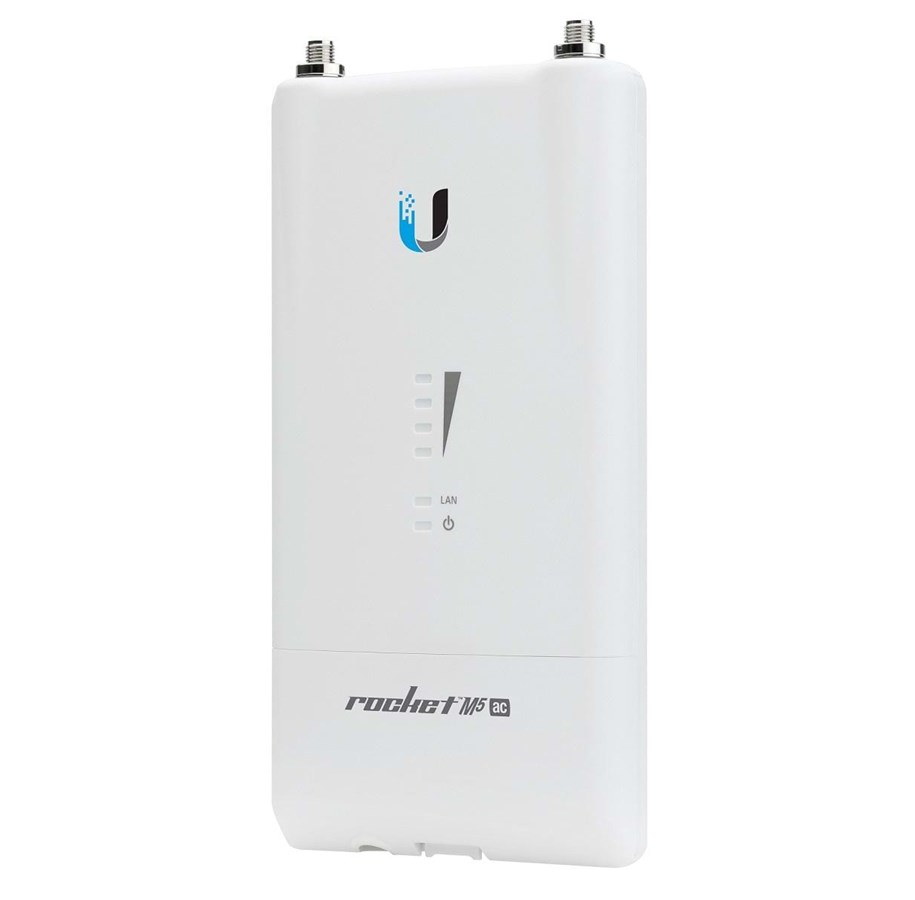

Ubiquiti RocketM5 R5AC-Lite PTP AirMax
Basestation, outdoor, 802.11ac, Point-to-Point function - built-in AirMax technology with Ubiquiti airOS
112,11 €
92,65 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd
Inclusief oplader
Rocket ac - airMAX ac BaseStation
Featuring proprietary airMAX ac technology, the Rocket 5ac Lite is ideal for deployment in Point-to-Point (PtP) bridging applications requiring maximum performance. Point-to-MultiPoint (PtMP) functionality will be added via a future firmware upgrade.
Performance Breakthrough
airMAX ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
Superior ProcessingUbiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.< br >< br >< img src="http://ubcdn.co/media/images/product-features/rocketm5acptplite-feature-processing.jpg">< br >< br >< hr >< br >< br >Plug and Play IntegrationThe innovative airMAX ac antennas feature significant advances in beam and energy isolation performance for increased capacity of airMAX networks.< br > < center > < img src="http://ubcdn.co/media/images/product-features/rocketm5acptplite-feature-plugandplay.jpg" width="680px"> < Br > < Br > < hr > < Br >Advanced Software TechnologyUbiquiti’s AirMax technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA AirMax protocol enables unprecedented scalability, high throughput and low latency in unlicensed multipoint networks. .
Featuring proprietary airMAX ac technology, the Rocket 5ac Lite is ideal for deployment in Point-to-Point (PtP) bridging applications requiring maximum performance. Point-to-MultiPoint (PtMP) functionality will be added via a future firmware upgrade.
Performance Breakthrough
airMAX ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
Superior ProcessingUbiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.< br >< br >< img src="http://ubcdn.co/media/images/product-features/rocketm5acptplite-feature-processing.jpg">< br >< br >< hr >< br >< br >Plug and Play IntegrationThe innovative airMAX ac antennas feature significant advances in beam and energy isolation performance for increased capacity of airMAX networks.< br > < center > < img src="http://ubcdn.co/media/images/product-features/rocketm5acptplite-feature-plugandplay.jpg" width="680px"> < Br > < Br > < hr > < Br >Advanced Software TechnologyUbiquiti’s AirMax technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA AirMax protocol enables unprecedented scalability, high throughput and low latency in unlicensed multipoint networks.
Producent
Productnummer
2470355
Model
R5AC-Lite
EAN
810354022708
Naar de website van de producent
Neem contact op met de fabrikant
Productbeschrijving
Ubiquiti Rocket ac R5AC-LITE - draadloze-toegangspunt - AirMax ac
Type apparaat
Draadloze-toegangspunt
Formfactor
Extern - buitenshuis
Processor
1 x Atheros MIPS 74KC 720 MHz
RAM
128 MB
Flashgeheugen
16 MB
Protocol voor gegevenskoppeling
AirMax ac
Frequentieband
5 GHz
Ondersteund Power Over Ethernet (PoE)
PoE
Afmetingen (BxDxH)
8.4 cm x 3.4 cm x 16.2 cm
Gewicht
250 g
Algemeen
Type apparaat
Draadloze-toegangspunt
Verstevigde uitvoering
Buitenshuis
Breedte
8.4 cm
Diepte
3.4 cm
Hoogte
16.2 cm
Gewicht
250 g
Processor / Geheugen / Opslag
Processoren geïnstalleerd
1 x Atheros MIPS 74KC 720 MHz
Max. aantal ondersteund
1
RAM
128 MB DDR2 SDRAM
Flashgeheugen
16 MB
Netwerk
Model
Extern
Connectiviteit
Draadloos
Lijncoderingsindeling
64 QAM, 256 QAM, BPSK, QPSK, 16 QAM
Protocol voor gegevenskoppeling
AirMax ac
Netwerk-/transportprotocol
DHCP
Protocol voor beheer op afstand
SNMP, Telnet, SSH
Frequentieband
5 GHz
Statuslampjes
Voeding, signaalsterkte, LAN
Voorzieningen
Routering, NAT-ondersteuning, VLAN-ondersteuning, web-server, ondersteuning Wi-Fi Multimedia (WMM), Quality of Service (QoS), draadloze brugmodus, 24KV ESD Protector
Encryptie-algoritme
AES, WPA2
Uitbreiding / Aansluiting
Interfaces
2 x antenne - RP-SMA
1 x 1000Base-T (PoE) - RJ-45
1 x 1000Base-T (PoE) - RJ-45
Diversen
Conformiteitsnormen
IC, FCC, RoHS, ETSI 300 019
Stroom
Ondersteund Power Over Ethernet (PoE)
PoE
Energieverbruik tijdens gebruik
8.5 watt
Software / Systeemvereisten
Inclusief OS
AirOS
Omgevingsparameters
Min. gebruikstemperatuur
-40 °C
Max. gebruikstemperatuur
80 °C
Luchtvochtigheidsgraad bij gebruik
5 - 95% (niet-condenserend)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
