Productnummer: 3100626

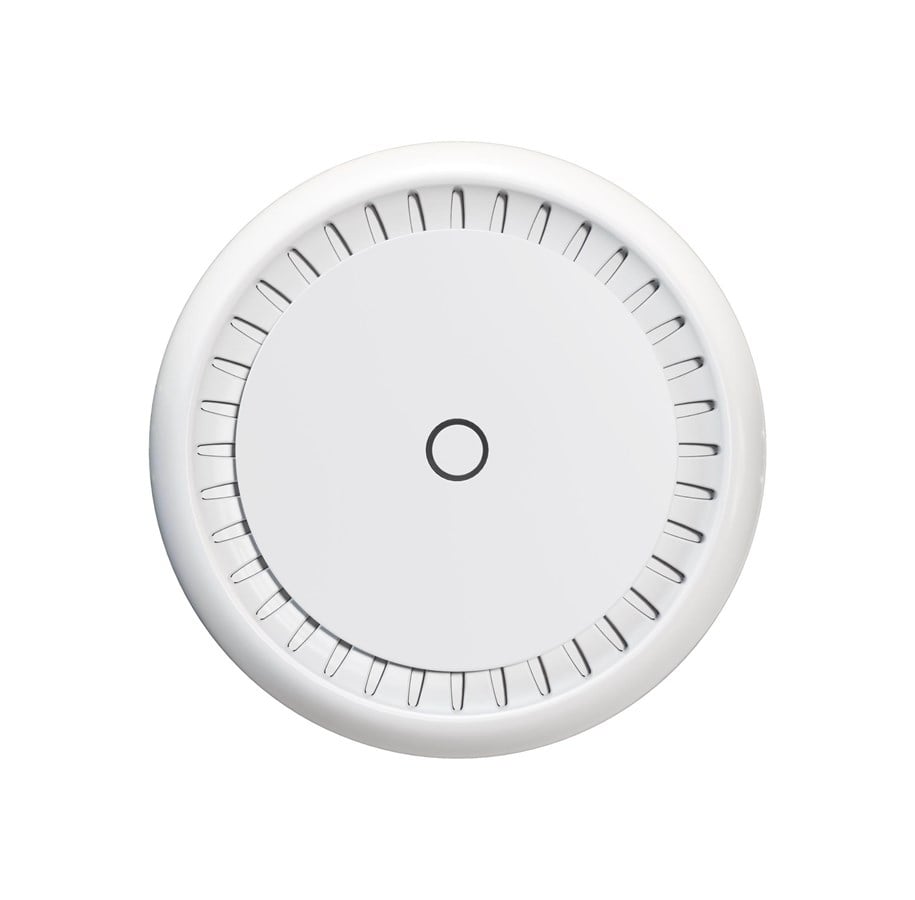

MikroTik cAP XL ac / RBcAPGi-5acD2nD-XL
Radio access point, Wi-Fi 5, 2.4 GHz, 5 GHz
85,35 €
70,54 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 9 - 10 werkdagen levertijd
Need a nice-looking access point that won't get in your way? Or perhaps you're managing the network in a crowded place and don't want everyone to have physical access to the device? Either way - ceiling is the answer! The device itself is pretty sleek - the low profile attracts less attention than a smoke detector. Your clients, guests, or colleagues won't even notice it. But they will definitely notice the blazing fast wireless connection all across the premises.
The design features a larger high-gain antenna, higher sensitivity, and a built-in reflector. These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models!
The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you don't have to worry about the placement of the device so much. Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.
Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the ability to extend your network with cables, even if PoE power is required: the cAP XL ac supports 802.3af/at PoE input on the first port and passive PoE output (up to 57V) on the second port.
The design features a larger high-gain antenna, higher sensitivity, and a built-in reflector. These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models!
The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you don't have to worry about the placement of the device so much. Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.
Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the ability to extend your network with cables, even if PoE power is required: the cAP XL ac supports 802.3af/at PoE input on the first port and passive PoE output (up to 57V) on the second port.
Producent
Productnummer
3100626
Model
RBcAPGi-5acD2nD-XL
EAN
4752224007278
Naar de website van de producent
2,4 GHz
Ja
5 GHz
Ja
6 GHz
Nee
Maximale overdrachtssnelheid van gegevens
867 Mbit/s
Maximale overdrachtssnelheid van gegevens (2.4 GHz)
300 Mbit/s
Maximale overdrachtssnelheid van gegevens (5 GHz)
867 Mbit/s
Draadloos LAN data-overdrachtsnelheid (max)
867 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Frequentieband
2 - 5.5 GHz
Netwerkstandaard
IEEE 802.3af, IEEE 802.3at
Bekabelingstechnologie
10/100/1000Base-T(X)
Bluetooth
Nee
Zendvermogen (CE)
26 dBm
Mean time between failures (MTBF)
100000 uur
Beveiligingseigenschappen
IPsec hardware acceleration
Aantal Ethernet LAN (RJ-45)-poorten
2
Aantal USB 2.0-poorten
0
Aansluiting voor netstroomadapter
Ja
Power over Ethernet (PoE)
Ja
Type Power over Ethernet (PoE) ondersteunt
Passive PoE
AC-ingangsspanning
17 - 57 V
DC voltage bereik
24 V
Stroom
1.2 A
Stroomverbruik (typisch)
11 W
Vermogensverbruik (max)
24 W
Plaatsing
Plafond, Muur
Kleur van het product
Wit
WPS Push Button Security
Ja
Soort antenne
Intern
Chipset
IPQ-4018
Type processor
Ja
Processormodel
IPQ4018
Frequentie van processor
716 MHz
Flash memory
128 MB
Intern geheugen
16 MB
Inclusief besturingssysteem
RouterOS
Termijn voor beveiligingsupdates
IPsec hardware acceleration
Certificaten van naleving
CE, Federal Communications Commission (FCC), RoHS
Breedte
191 mm
Hoogte
42 mm
Draadloze technologie
Wi-Fi 5
Garantieperiode
5 jaar
Kenmerken
2,4 GHz
Ja
5 GHz
Ja
6 GHz
Nee
Maximale overdrachtssnelheid van gegevens
867 Mbit/s
Maximale overdrachtssnelheid van gegevens (2.4 GHz)
300 Mbit/s
Maximale overdrachtssnelheid van gegevens (5 GHz)
867 Mbit/s
Draadloos LAN data-overdrachtsnelheid (max)
867 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Frequentieband
2 - 5.5 GHz
Netwerkstandaard
IEEE 802.3af, IEEE 802.3at
Bekabelingstechnologie
10/100/1000Base-T(X)
Bluetooth
Nee
Zendvermogen (CE)
26 dBm
Mean time between failures (MTBF)
100000 uur
Beveiliging
Beveiligingseigenschappen
IPsec hardware acceleration
Poorten & interfaces
Aantal Ethernet LAN (RJ-45)-poorten
2
Aantal USB 2.0-poorten
0
Aansluiting voor netstroomadapter
Ja
Energie
Power over Ethernet (PoE)
Ja
Type Power over Ethernet (PoE) ondersteunt
Passive PoE
AC-ingangsspanning
17 - 57 V
DC voltage bereik
24 V
Stroom
1.2 A
Stroomverbruik (typisch)
11 W
Vermogensverbruik (max)
24 W
Design
Plaatsing
Plafond, Muur
Kleur van het product
Wit
WPS Push Button Security
Ja
Antenne
Soort antenne
Intern
Prestatie
Chipset
IPQ-4018
Type processor
Ja
Processormodel
IPQ4018
Frequentie van processor
716 MHz
Flash memory
128 MB
Intern geheugen
16 MB
Inclusief besturingssysteem
RouterOS
Termijn voor beveiligingsupdates
IPsec hardware acceleration
Certificaten
Certificaten van naleving
CE, Federal Communications Commission (FCC), RoHS
Gewicht en omvang
Breedte
191 mm
Hoogte
42 mm
Overige specificaties
Draadloze technologie
Wi-Fi 5
Logistieke gegevens
Garantieperiode
5 jaar
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
