Productnummer: 2732596

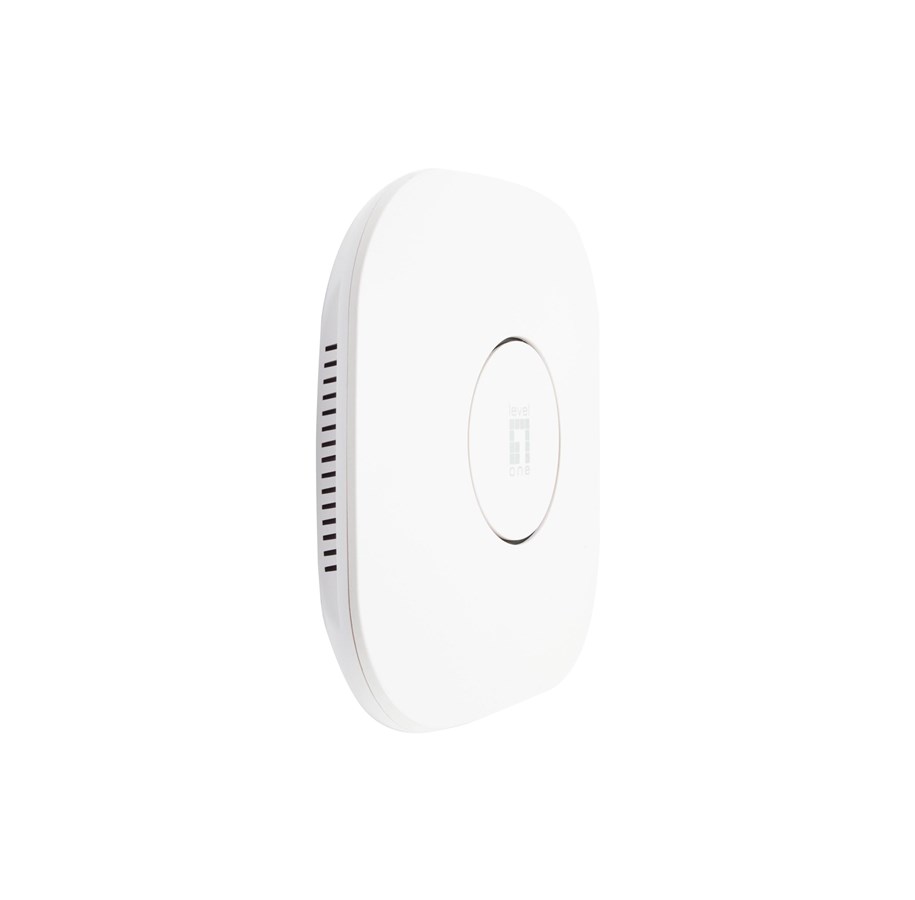

LevelOne WAP-8121 AC750 Dual Band PoE Wireless Access Point Ceiling Mount Controller Managed
Draadloze-toegangspunt, Wi-Fi 5, 2.4 GHz, 5 GHz, in het plafond
93,94 €
77,64 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
The LevelOne WAP-8121 is a sophisticated, fast dual-band managed wireless access point, offering up to 450 Mbps on the 5 GHz band and up to 300 Mbps on the 2.4 GHz band. It provides a combined throughput of 750 Mbps using 802.11ac standards. The advanced wireless access point also supports all legacy wireless devices on 802.11a/b/g/n. WAP-8121 performs automatic testing and assigns channels dynamically to detect conflicts and channel interference, constantly optimizing performance in the background. The device runs on PoE, negating the need for electrical wiring.
Central management allows for adjustments to the RF (Radio Frequency) (according to) the environment, further optimizing the performance of the network by adjusting and balancing workloads as well as detecting areas of weak reception. it provides WEP, WPA-PSK, WPA-TKIP, and WPA2 AES secured connectivity for securing the Wireless Area Network and to prevent unauthorized access. The device supports up to four(Eight) SSIDs allowing unique configuration settings for different network regions. The sophisticated and stylish access point mounts on a ceiling, providing a low-profile, highly effective networking solution.
Central management allows for adjustments to the RF (Radio Frequency) (according to) the environment, further optimizing the performance of the network by adjusting and balancing workloads as well as detecting areas of weak reception. it provides WEP, WPA-PSK, WPA-TKIP, and WPA2 AES secured connectivity for securing the Wireless Area Network and to prevent unauthorized access. The device supports up to four(Eight) SSIDs allowing unique configuration settings for different network regions. The sophisticated and stylish access point mounts on a ceiling, providing a low-profile, highly effective networking solution.
Producent
Productnummer
2732596
Model
WAP-8121
EAN
4015867199190
Naar de website van de producent
2,4 GHz
Ja
5 GHz
Ja
Maximale overdrachtssnelheid van gegevens
433 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Frequentieband
2.4 - 5.825 GHz
Netwerkstandaard
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Aantal gebruikers
80 gebruiker(s)
Aantal kanalen
36 kanalen
Automatische kanaalselectie
Ja
Modulatie
16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Wifi Multimedia (WMM)/(WME)
Ja
Datastroombeheer
Ja
Quality of Service (QoS)
Ja
Gevoeligheid ontvanger
2.4GHz:
802.11n (20MHZ): -70 dBm
802.11n (40MHZ): -68 dBm
802.11g: -72 dBm
802.11b: -95 dBm
5GHz:
802.11ac (80MHZ): -62 dBm
802.11ac (40MHZ): -65 dBm
802.11ac (20MHZ): -68 dBm
802.11n (40MHZ): -68 dBm
802.11n (20MHZ): -70 dBm
802.11a: -72 dBm
Ondersteunde beveiligingsalgoritmen
64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP
Service Set Identifier (SSID) functies
SSID-broadcast aan/uit
Aantal SSID-ondersteuningen
8
Web-gebaseerd management
Ja
Switch type
Managed
Upgraden van firmware mogelijk
Ja
Aantal Ethernet LAN (RJ-45)-poorten
2
Aantal USB 2.0-poorten
0
WAN-poort
Ethernet (RJ-45), Wi-Fi
Aansluiting voor netstroomadapter
Ja
Power over Ethernet (PoE)
Ja
Spanning
12 V
Output current
1,5 A
Stroomverbruik (typisch)
15 W
Plaatsing
Plafond, Muur
Kleur van het product
Wit
Reset button
Ja
LED-indicatoren
Stroom, WLAN
Intern
Nee
Type antennerichting
Omni-directioneel
Antennefuncties
Ingebouwde antenne
Antennas quantity
3
Antenne versterkingsniveau (max)
15 dBi
Certificering
CE/FCC
Breedte
189 mm
Diepte
38,5 mm
Hoogte
189 mm
Gewicht
326 g
Breedte verpakking
214 mm
Diepte verpakking
62 mm
Hoogte verpakking
317 mm
Gewicht verpakking
680 g
Meegeleverde kabels
LAN (RJ-45)
Snelstartgids
Ja
Relatieve vochtigheid in bedrijf (V-V)
-20 - 50 procent
Bedrijfstemperatuur (T-T)
-40 - 70 °C
Temperatuur bij opslag
5 - 90 °C
Luchtvochtigheid bij opslag
10 - 90 procent
Code geharmoniseerd systeem (HS)
85176990
Kenmerken
2,4 GHz
Ja
5 GHz
Ja
Maximale overdrachtssnelheid van gegevens
433 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Frequentieband
2.4 - 5.825 GHz
Netwerkstandaard
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Aantal gebruikers
80 gebruiker(s)
Aantal kanalen
36 kanalen
Automatische kanaalselectie
Ja
Modulatie
16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Wifi Multimedia (WMM)/(WME)
Ja
Datastroombeheer
Ja
Quality of Service (QoS)
Ja
Gevoeligheid ontvanger
2.4GHz:
802.11n (20MHZ): -70 dBm
802.11n (40MHZ): -68 dBm
802.11g: -72 dBm
802.11b: -95 dBm
5GHz:
802.11ac (80MHZ): -62 dBm
802.11ac (40MHZ): -65 dBm
802.11ac (20MHZ): -68 dBm
802.11n (40MHZ): -68 dBm
802.11n (20MHZ): -70 dBm
802.11a: -72 dBm
Beveiliging
Ondersteunde beveiligingsalgoritmen
64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP
Service Set Identifier (SSID) functies
SSID-broadcast aan/uit
Aantal SSID-ondersteuningen
8
Beheerfuncties
Web-gebaseerd management
Ja
Switch type
Managed
Upgraden van firmware mogelijk
Ja
Poorten & interfaces
Aantal Ethernet LAN (RJ-45)-poorten
2
Aantal USB 2.0-poorten
0
WAN-poort
Ethernet (RJ-45), Wi-Fi
Aansluiting voor netstroomadapter
Ja
Energie
Power over Ethernet (PoE)
Ja
Spanning
12 V
Output current
1,5 A
Stroomverbruik (typisch)
15 W
Design
Plaatsing
Plafond, Muur
Kleur van het product
Wit
Reset button
Ja
LED-indicatoren
Stroom, WLAN
Intern
Nee
Antenne
Type antennerichting
Omni-directioneel
Antennefuncties
Ingebouwde antenne
Antennas quantity
3
Antenne versterkingsniveau (max)
15 dBi
Certificaten
Certificering
CE/FCC
Gewicht en omvang
Breedte
189 mm
Diepte
38,5 mm
Hoogte
189 mm
Gewicht
326 g
Verpakking
Breedte verpakking
214 mm
Diepte verpakking
62 mm
Hoogte verpakking
317 mm
Gewicht verpakking
680 g
Inhoud van de verpakking
Meegeleverde kabels
LAN (RJ-45)
Snelstartgids
Ja
Eisen aan de omgeving
Relatieve vochtigheid in bedrijf (V-V)
-20 - 50 procent
Bedrijfstemperatuur (T-T)
-40 - 70 °C
Temperatuur bij opslag
5 - 90 °C
Luchtvochtigheid bij opslag
10 - 90 procent
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
