Productnummer: 2732519

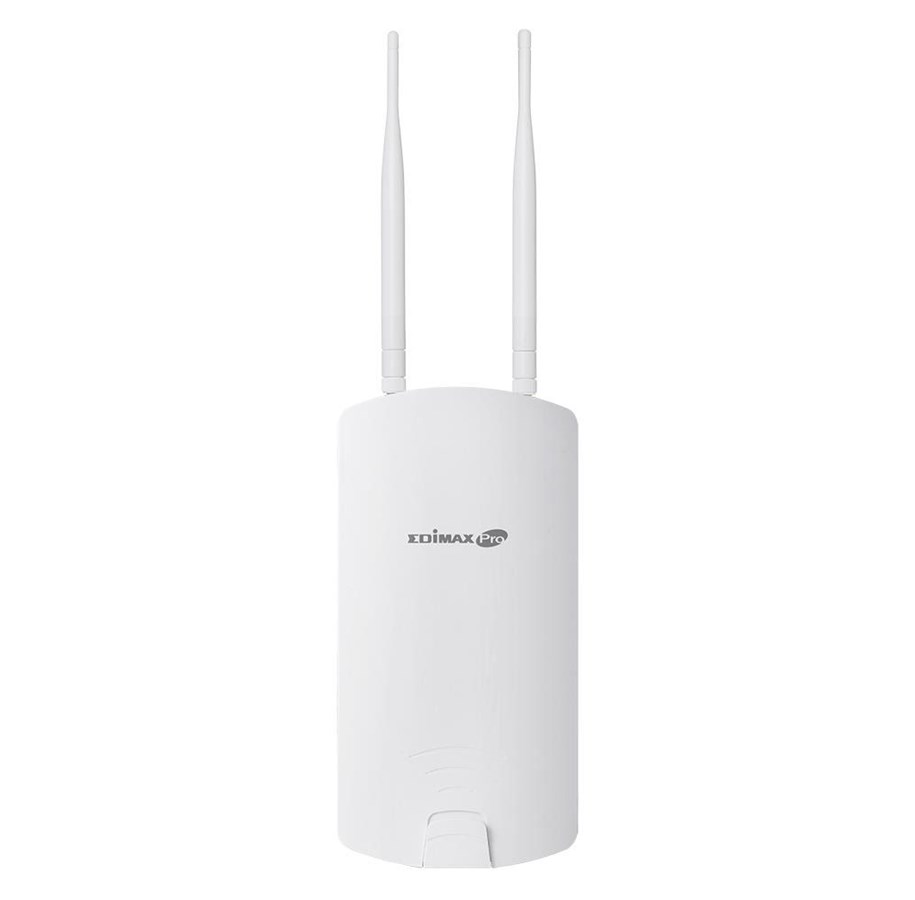

Edimax OAP1300 / 2 x 2 AC Dual-Band Outdoor PoE Access Point

Draadloze-toegangspunt, Wi-Fi 5, 2.4 GHz, 5 GHz

155,19 € 128,26 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

The OAP1300 features an IP56 rated weatherproof housing and provides a premium wireless solution designed for SMBs which demand elite network performance. The product features the latest 2 x 2 IEEE 802.11ac technology for wireless speeds up to 1300Mbps. A wall or pole-mounted design and industrial-grade build quality combined with user-friendly operation and extensive feature set, make an ideal high-performance solution for demanding day-to-day enterprise outdoor long range Wi-Fi and Point-to-Point applications such as WISP clients, Internet sharing, wireless surveillance in multi-tenant units (MTUs) and multi-dwelling units (MDUs) with PoE and easy installation mounting kits.For businesses that demand security, flexibility and speed - the Edimax Pro series has a wide range of potential applications from office environments to schools, campuses, hotels and hospitals. Multiple SSIDs can be configured for different departments or user groups and a built-in RADIUS server provides additional verification with a scalable AP array architecture for central management of multiple access points. High-density capacity for up to 200 simultaneous clients (100 clients per band), ideal for BYOE workplaces or other environments with a high volume of clients and wireless devices, and fast roaming allows for seamless transitions between multiple access points. Power over Ethernet (PoE) support and an intuitive web-based management interface provide deployment flexibility and extensive management options for company MIS departments and network administrators.

Producent
Productnummer
2732519
Model
OAP1300
EAN
4717964702760
Naar de website van de producent
2,4 GHz
Ja
5 GHz
Ja
Maximale overdrachtssnelheid van gegevens
1266 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Frequentieband
2.412-2.462; 2.412-2472; 2.412-2.484; 5.18-5.24; 5.26-5.32; 5.745-5.825; 5.5-5.7 GHz
Netwerkstandaard
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Fit AP-modusfuncties
Draadloos distributiesysteem (WDS)
Wifi Multimedia (WMM)/(WME)
Ja
Snelle roaming
Ja
VLAN=ondersteuning
Ja
Quality of Service (QoS)
Ja
Zendvermogen
23 dBmW
Gevoeligheid ontvanger
-93 dBm
Ondersteunde beveiligingsalgoritmen
802.1x RADIUS, EAP, SNMP, SNMPv3, SSH, WEP, WPA, WPA2
MAC adres filtering
Ja
Aantal SSID-ondersteuningen
32
Auto Wireless Distribution System (WDS)
Ja
VPN eigenschappen
IPsec, L2TP, PPTP
Aantal Ethernet LAN (RJ-45)-poorten
2
Aantal USB 2.0-poorten
0
Power over Ethernet (PoE)
Ja
Vermogensverbruik (max)
15 W
Plaatsing
Paal, Muur
Kleur van het product
Wit
Reset button
Ja
LED-indicatoren
LAN, Stroom, Status
Intern
Nee
Antennas quantity
2
Antenne versterkingsniveau (max)
4,41 dBi
Aansluiting antenne
N-type
Certificering
CE / FCC
Breedte
120,9 mm
Diepte
271,8 mm
Hoogte
35 mm
Gewicht
592 g
Cd-handleiding
Ja
Meegeleverde kabels
LAN (RJ-45)
Montage gereedschap
Ja
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent
Bedrijfstemperatuur (T-T)
-40 - 60 °C

Kenmerken

2,4 GHz
Ja
5 GHz
Ja
Maximale overdrachtssnelheid van gegevens
1266 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Frequentieband
2.412-2.462; 2.412-2472; 2.412-2.484; 5.18-5.24; 5.26-5.32; 5.745-5.825; 5.5-5.7 GHz
Netwerkstandaard
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Fit AP-modusfuncties
Draadloos distributiesysteem (WDS)
Wifi Multimedia (WMM)/(WME)
Ja
Snelle roaming
Ja
VLAN=ondersteuning
Ja
Quality of Service (QoS)
Ja
Zendvermogen
23 dBmW
Gevoeligheid ontvanger
-93 dBm

Beveiliging

Ondersteunde beveiligingsalgoritmen
802.1x RADIUS, EAP, SNMP, SNMPv3, SSH, WEP, WPA, WPA2
MAC adres filtering
Ja
Aantal SSID-ondersteuningen
32
Auto Wireless Distribution System (WDS)
Ja
VPN eigenschappen
IPsec, L2TP, PPTP

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten
2
Aantal USB 2.0-poorten
0

Energie

Power over Ethernet (PoE)
Ja
Vermogensverbruik (max)
15 W

Design

Plaatsing
Paal, Muur
Kleur van het product
Wit
Reset button
Ja
LED-indicatoren
LAN, Stroom, Status
Intern
Nee

Antenne

Antennas quantity
2
Antenne versterkingsniveau (max)
4,41 dBi
Aansluiting antenne
N-type

Certificaten

Certificering
CE / FCC

Gewicht en omvang

Breedte
120,9 mm
Diepte
271,8 mm
Hoogte
35 mm
Gewicht
592 g

Verpakking

Cd-handleiding
Ja

Inhoud van de verpakking

Meegeleverde kabels
LAN (RJ-45)
Montage gereedschap
Ja

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent
Bedrijfstemperatuur (T-T)
-40 - 60 °C
