Productnummer: 3419897

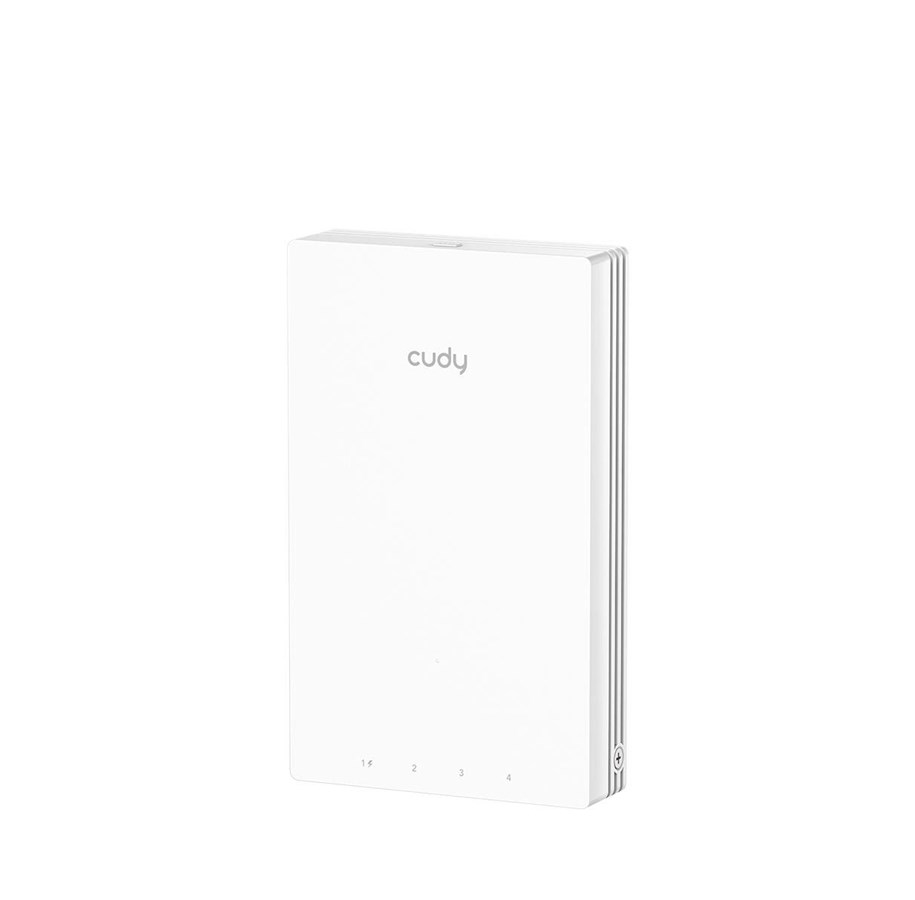

Cudy AP3000 Wall AX3000 Wall-Plate Wi-Fi 6 Access Point
1.0, draadloze-toegangspunt, 5 poorten, 1GbE, Wi-Fi 6, 2.4 GHz, 5 GHz, wandmontage
101,53 €
83,91 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 8 - 9 werkdagen levertijd
Lader niet inbegrepen.
The Cudy AP3000 Wall is a wall-mountable wireless access point designed to provide reliable connectivity for various indoor applications. Featuring a ruggedized design with three internal antennas, this access point supports a robust network environment with up to 200 connected devices. With data transfer rates of 574 Mbps at 2.4 GHz and 2402 Mbps at 5 GHz, users can enjoy speedy connections across devices, ensuring seamless streaming and browsing. This device operates within a wide temperature range and humidity level, making it suitable for diverse indoor environments. Equipped with a dual-core processor running at 1.3 GHz and 256 MB of RAM, the Cudy AP3000 Wall offers efficient performance and responsiveness. Security features, including WPA, WPA2, and WPA3 encryption algorithms, protect the network effectively. Features such as mesh networking and MU-MIMO technology enhance the wireless experience, ensuring better coverage and connectivity throughout the space. This access point meets multiple standards, including Wi-Fi CERTIFIED 6, making it a reliable choice for modern networking needs.
Producent
Productnummer
3419897
Model
AP3000 Wall
EAN
6971690793388
Naar de website van de producent
Productbeschrijving
Cudy AP3000 Wall - 1.0 - draadloze-toegangspunt - Wi-Fi 6
Type apparaat
Draadloze-toegangspunt
Formfactor
Wandmontage - binnenshuis
Processor
1 x MediaTek MT7981BA - 1.3 GHz
RAM
256 MB
Flashgeheugen
128 MB
Aantal poorten
5
Protocol voor gegevenskoppeling
Fast Ethernet, Gigabit Ethernet, Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
Frequentieband
2.4 GHz, 5 GHz
Prestaties
Maximale gegevenssnelheid (2,4 GHz): 574 Mbps
Maximale gegevenssnelheid (5 GHz): 2402 Mbps
Kanaalbandbreedte: 160 MHz
Maximale gegevenssnelheid (5 GHz): 2402 Mbps
Kanaalbandbreedte: 160 MHz
Capaciteit
Verbonden apparaten: 200
SSID's per radio: 4
Streams: 4
SSID's per radio: 4
Streams: 4
Meegeleverde accessoires
Bevestigingsset
Ondersteund Power Over Ethernet (PoE)
Passieve PoE
Stroom
48 V
Afmetingen (BxDxH)
8.6 cm x 2.76 cm x 14.3 cm
Algemeen
Type apparaat
Draadloze-toegangspunt
Verstevigde uitvoering
Binnenshuis
Breedte
8.6 cm
Diepte
2.76 cm
Hoogte
14.3 cm
Processor / Geheugen / Opslag
Processoren geïnstalleerd
1 x MediaTek MT7981BA 1.3 GHz
RAM
256 MB DDR3 SDRAM
Flashgeheugen
128 MB
Netwerk
Model
Wandmontage
Aantal poorten
5
Connectiviteit
Draadloos
Lijncoderingsindeling
1024 QAM, OFDMA
Protocol voor gegevenskoppeling
Fast Ethernet, Gigabit Ethernet, Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
Spread Sprectum-methode
OFDMA
Netwerk-/transportprotocol
DHCP, IPv4, IGMP
Frequentieband
2.4 GHz, 5 GHz
Max. bereik buitenshuis
80 m
Max. afdekgebied
Up to 60 sq.m
Prestaties
Maximale gegevenssnelheid (2,4 GHz): 574 Mbps
Maximale gegevenssnelheid (5 GHz): 2402 Mbps
Kanaalbandbreedte: 160 MHz
Maximale gegevenssnelheid (5 GHz): 2402 Mbps
Kanaalbandbreedte: 160 MHz
Capaciteit
Verbonden apparaten: 200
SSID's per radio: 4
Streams: 4
SSID's per radio: 4
Streams: 4
Wifi-classificatie
AX3000
Voorzieningen
Tweekerns-CPU, 2x2 MIMO-technologie, 3x3 MIMO-technologie, bundelvormende technologie, hardwarebewaking, gepland opnieuw opstarten, 4 kV-ESD-bescherming (contactontlading), 8 kV-ESD-bescherming (luchtspleetontlading), MU-MIMO-technologie, BSS-kleuren, Mesh-netwerken, Backhaul Technology, DHCP-server, IGMP-spionage, wake on LAN (WOL), Wireless Scheduler, Firmware Over-the-Air (FOTA), reset-knop
Encryptie-algoritme
WPA, WPA2, WPA3
Conformiteitsnormen
IEEE 802.3af, IEEE 802.3at, Wi-Fi CERTIFIED 6, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax
Antenne
Antenne
Intern
Hoeveelheid antennes
3
Uitbreiding / Aansluiting
Interfaces
1 x 1000Base-T (PoE-invoer) - RJ-45
1 x 1000Base-T (PoE-uitgang) - RJ-45
3 x 10/100/1000Base-T - RJ-45
1 x 1000Base-T (PoE-uitgang) - RJ-45
3 x 10/100/1000Base-T - RJ-45
Diversen
Meegeleverde accessoires
Bevestigingsset
Conformiteitsnormen
FCC
Stroom
Ondersteund Power Over Ethernet (PoE)
Passieve PoE
Voeding
Voedingsinjector (niet inbegrepen)
Vereiste netspanning
48 V
Afmetingen & gewicht (transport)
Verzendbreedte
15.2 cm
Verzenddiepte
3.95 cm
Verzendhoogte
9 cm
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
10 - 90% (niet condenserend)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
