Productnummer: 3450813

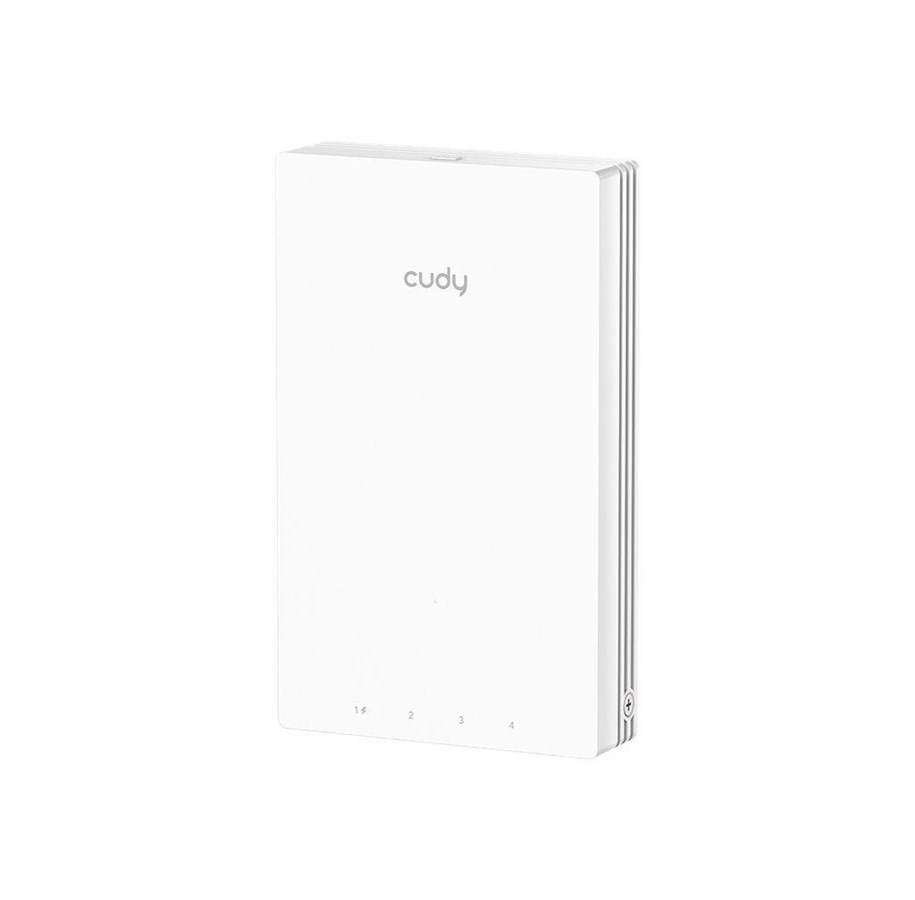

Cudy AP1300 Wall - 1.0 - radio access point - Wi-Fi 5
1.0, draadloze-toegangspunt, Wi-Fi 5, 2.4 GHz, 5 GHz, wandmontage
51,95 €
42,93 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 6 - 7 werkdagen levertijd
The Cudy AP1300 Wall is a reliable wireless access point designed for indoor use, capable of supporting up to 100 connected devices. With its ruggedized design, it can handle various environments, maintaining performance in a wide temperature range from 0°C to 40°C and humidity levels of 10 to 90%. Featuring dual-band Wi-Fi with a combined data transfer rate of 1.2 Gbps, it delivers connectivity across 2.4 GHz and 5 GHz bands, ensuring performance in large spaces.Equipped with advanced features such as MU-MIMO technology, beamforming technology, and Mesh networking, the Cudy AP1300 Wall optimizes Wi-Fi coverage throughout your home or office. Its wall-mountable form factor allows for easy installation, while support for multiple encryption algorithms such as WPA, WPA2, and WPA3 ensures secure connections. Additionally, the 16 MB of flash memory and 128 MB of RAM contribute to its fault-tolerant performance, making it a choice for those seeking reliable and efficient network solutions.
Producent
Productnummer
3450813
Model
AP1300 Wall
EAN
6971690793432
Naar de website van de producent
Productbeschrijving
Cudy AP1300 Wall - 1.0 - draadloze-toegangspunt - Wi-Fi 5
Type apparaat
Draadloze-toegangspunt
Formfactor
Wandmontage - binnenshuis
Processor
1 x MediaTek MT7621DA - 880 MHz
RAM
128 MB
Flashgeheugen
16 MB
Protocol voor gegevenskoppeling
IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b
Frequentieband
2.4 GHz, 5 GHz
Prestaties
Maximale gegevenssnelheid (2,4 GHz): 300 Mbps
Maximale gegevenssnelheid (5 GHz): 867 Mbps
Kanaalbandbreedte: 80 MHz
Maximale gegevenssnelheid (5 GHz): 867 Mbps
Kanaalbandbreedte: 80 MHz
Capaciteit
Verbonden apparaten: 100
SSID's per radio: 4
SSID's per radio: 4
Meegeleverde accessoires
Bevestigingsset
Ondersteund Power Over Ethernet (PoE)
Passieve PoE
Afmetingen (BxDxH)
8.6 cm x 2.76 cm x 14.3 cm
Algemeen
Type apparaat
Draadloze-toegangspunt
Verstevigde uitvoering
Binnenshuis
Breedte
8.6 cm
Diepte
2.76 cm
Hoogte
14.3 cm
Processor / Geheugen / Opslag
Processoren geïnstalleerd
1 x MediaTek MT7621DA 880 MHz
RAM
128 MB DDR3 SDRAM
Flashgeheugen
16 MB
Netwerk
Model
Wandmontage
Connectiviteit
Draadloos
Gegevensoverdrachtsnelheid
1.2 Gbps
Lijncoderingsindeling
256 QAM
Protocol voor gegevenskoppeling
IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b
Netwerk-/transportprotocol
DHCP, IPv4
Routingprotocol
Statische IP-routing, IGMP
Frequentieband
2.4 GHz, 5 GHz
Max. bereik buitenshuis
80 m
Max. afdekgebied
Up to 60 sq.m
Prestaties
Maximale gegevenssnelheid (2,4 GHz): 300 Mbps
Maximale gegevenssnelheid (5 GHz): 867 Mbps
Kanaalbandbreedte: 80 MHz
Maximale gegevenssnelheid (5 GHz): 867 Mbps
Kanaalbandbreedte: 80 MHz
Capaciteit
Verbonden apparaten: 100
SSID's per radio: 4
SSID's per radio: 4
Wifi-classificatie
AC1200
Statuslampjes
Systeem
Voorzieningen
Hardwarebewaking, gepland opnieuw opstarten, 2x2 MIMO-technologie, tweekerns-CPU, bundelvormende technologie, reset-knop, aan-uit-ledknop, 4 kV-ESD-bescherming (contactontlading), 8 kV-ESD-bescherming (luchtspleetontlading), MU-MIMO-technologie, Wi-Fi Protected Setup (WPS), Mesh-netwerken, Backhaul Technology, DHCP-server, IGMP-spionage, Captive Portal, wake on LAN (WOL), Wi-Fi-planning, firmware die kan worden opgewaardeerd
Encryptie-algoritme
WPA, WPA2, WPA3
Conformiteitsnormen
IEEE 802.3at, IEEE 802.3af, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, Wi-Fi CERTIFIED 5, UPnP
Antenne
Antenne
Intern
Hoeveelheid antennes
2
Uitbreiding / Aansluiting
Interfaces
1 x 1000Base-T (PoE-invoer) - RJ-45
1 x 1000Base-T (PoE-uitgang) - RJ-45
3 x 1000Base-T - RJ-45
1 x 1000Base-T (PoE-uitgang) - RJ-45
3 x 1000Base-T - RJ-45
Diversen
Meegeleverde accessoires
Bevestigingsset
Conformiteitsnormen
FCC
Stroom
Ondersteund Power Over Ethernet (PoE)
Passieve PoE
Afmetingen & gewicht (transport)
Verzendbreedte
15.2 cm
Verzenddiepte
3.95 cm
Verzendhoogte
9 cm
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
10 - 90% (niet condenserend)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
