Productnummer: 2763410
Elpress Alcu-terminal akk95-8 95mm2 sm/rm m8
Aluminium terminal with cobberpalm AKK95-8For 95mm2 stranded (class 2) and 120mm2 solid (class 1) Al-conductor.Palm M8.Prerounding of the conductor is needed. Matrix/punchno.: 13MR/13DR.The terminal must be indentcrimped twice thereafter.Matrix/punchno.: 25M/25D.Recommended tool: V1300 system, V250 system
22,52 €
18,61 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 3 - 4 werkdagen levertijd

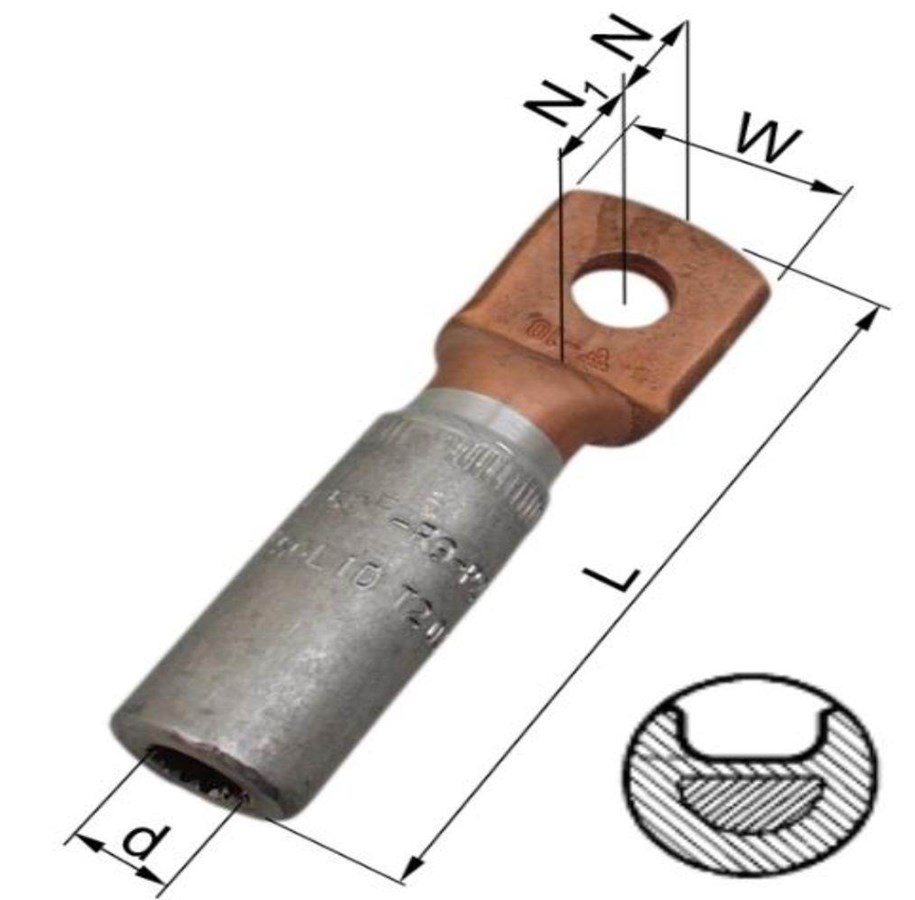

Al/Cu cable lug AKK95-8, 95mm2 SM/RM M8 Product description: Aluminum cable lug with copper sleeve AKK95-8 for 95mm2 stranded (class 2) and 120mm2 solid (class 1) Al conductor. Sleeve M8. Round crimping of the conductor is required. Matrix/punch number: 13MR/13DR. The connection must then be punched twice with matrix/punch number: 25M/25D. Recommended tools: V1300 system, V250 system Technical specifications: Package size:12 Bolt:M8 Lenght(L):108 Diameter(D):25
